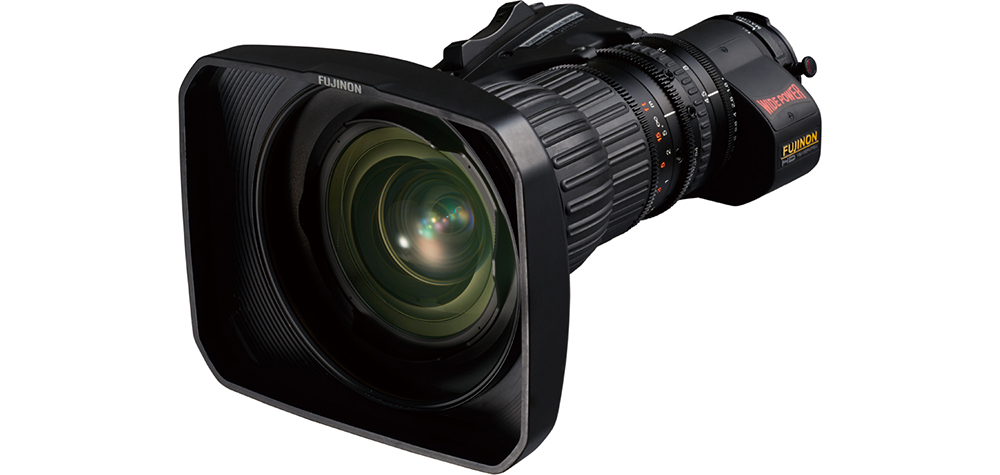

Fujinon ZA12x4.5BRM-M6 HDTV Lens (No Extender)
The Fujinon ZA12x4.5BRM-M6 ENG Style Lens with Servo Zoom is a 4.5-54mm lens, designed to provide 2/3" cameras with an ultra wide to telephoto angle-of-view. The lens has a 12x zoom ratio. The maximum aperture is a fast f/1.8 at 4.5-41mm and stops down to f/2.4 at 54mm. A digital servo for zoom control and a 16-bit encoder is also included.
Internal focusing minimizes the effects of lens breathing, which ensures a more consistent focal length when adjusting focus. Fujinon's QuickZoom technology improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Finally, the Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating various electronic and mechanical parameters.
4.5-54mm 12x zoom lens for 2/3" cameras
Fast f/1.8 max aperture at 4.5-41mm and f/2.4 at 54mm
Servo zoom and manual focus
16-Bit encoder
Innerfocus, QuickZoom and Zoom Limit
Focused Intelligent Network Diagnosis
Sensor Compatibility | 2/3" (16:9) |
Focal Length | 4.5 to 54mm |
Built-In Extender | 2x |
Zoom Ratio | 12x |
Angle of View | 16:9 |
Maximum Aperture | f/1.8 to 2.4 (T0 to 2.9) |
Filter Thread | M127 x 0.75 mm |
Minimum Focus Distance | From : 1.93' / 0.59 m |
Minimum Object Distance | 0.98' / 0.3 m |
Dimensions | 3.7 x 9.3" / 95.0 x 237.5 mm (ø x L) |
Weight | 4.03 lb / 1.83 kg |
Packaging Info
Package Weight | 4 KG |
Box Dimensions (LxWxH) | 15 x 12 x 10.7" |
