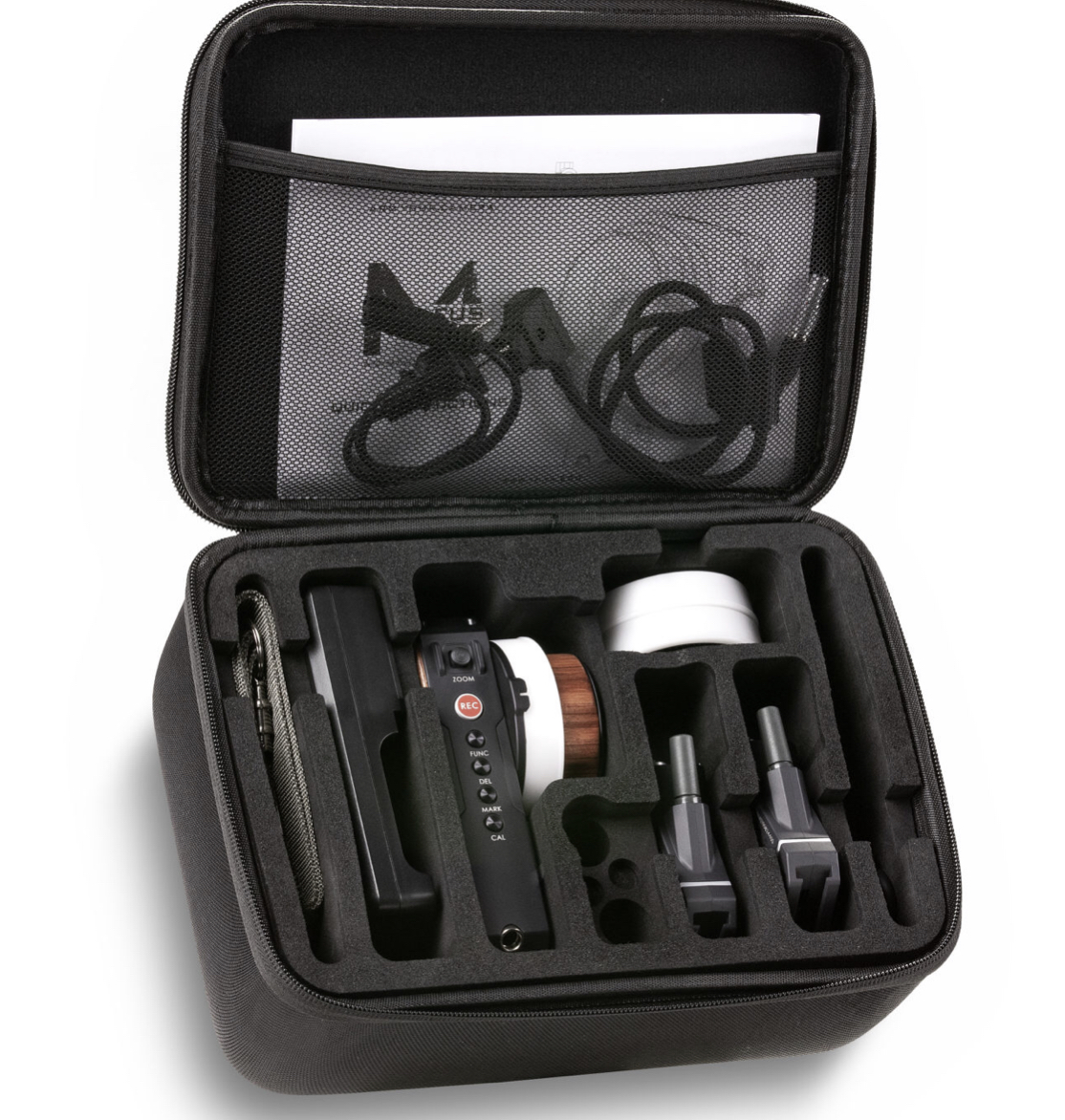

Tilta Nucleus-M Wireless Lens Control System Partial Kit IV

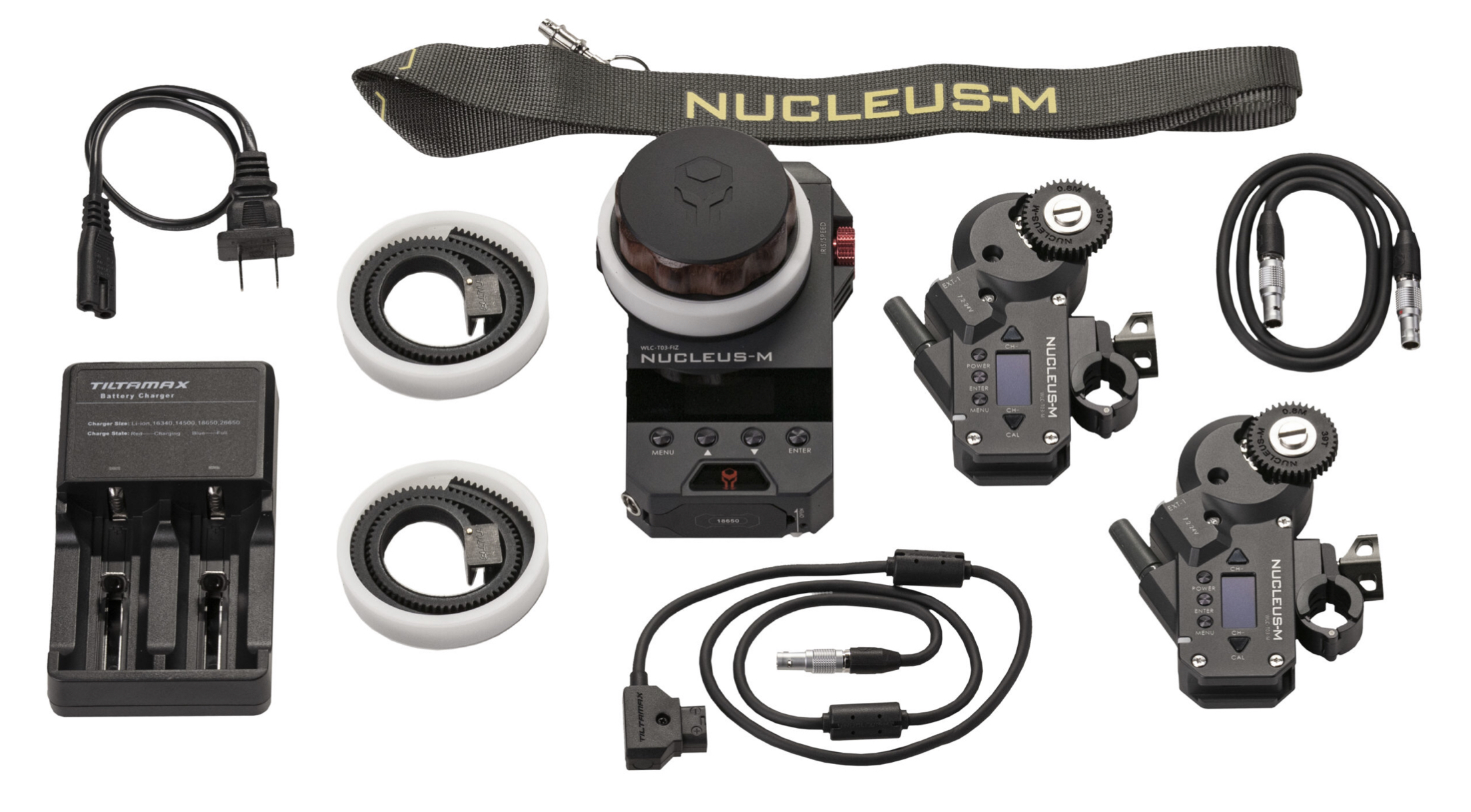

The Tilta Nucleus-M Wireless Lens Control System Partial Kit IV contains the essential elements for pulling focus and iris wirelessly.
Customize
Available Offer
Share :
Specification
Operating Frequency | 2.4 GHz |
Maximum Transmission Distance | 492 to 984' / 150 to 300 m |
Transmission Channels | 15 |
Emission Power | 30 to 100 MW |
Current | 0.15 A |
Voltage | 7.2 |
Battery Type | 18650 |
Operating Temperature Range | -4 to 122°F / -20 to 50°C |
Material of Construction | Aluminum alloy, stainless steel, ABS plastic |
Dimensions | 5.6 x 3.6 x 2.8" / 142.0 x 90.5 x 70 mm |
Weight | 15 oz / 430 g |
Packaging Info
Package Weight | 1.26 lb |
Box Dimensions (LxWxH) | 8 x 6.1 x 4.7" |

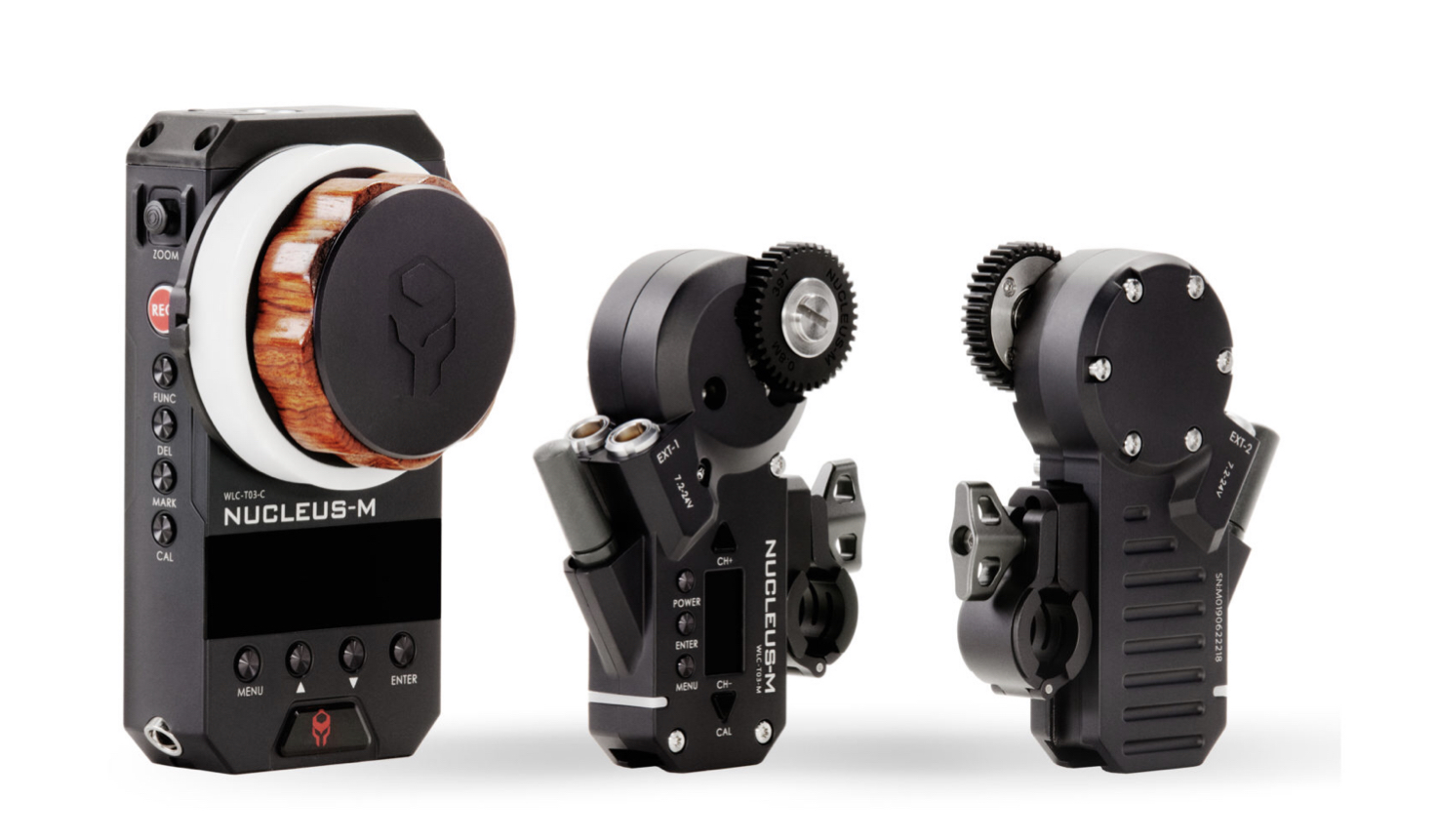

Tilta Nucleus-M FIZ Lens Control Motor Specs
Gear Mod | 0.8 |
Gear Pitch | 32 |
Number of Gear Teeth | 35 |
Face Width | 0.4" / 10 mm |
Operating Frequency | 2.4 GHz |
Maximum Range | 1640' / 500 m (unobstructed) |
Emission Power | 30-100 MW |
Current | Quiescent: 0.10 A, 14.8 V |
Voltage | 7.2-24 V |
Rod Compatibility | 19, 15 mm |
Noise | 15 dB |
Operating Temperature Range | -4 to 122°F / -20 to 50°C |
Material of Construction | Aluminum alloy, stainless steel, ABS plastic |
Dimensions | 4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm |
Weight | 6.7 oz / 190 g (motor only) |
Packaging Info
Package Weight | 0.495 lb |
Box Dimensions (LxWxH) | 6.45 x 4.65 x 1.4" |
Tilta DSLR Lens Follow Focus Adapter Specs
Material of Construction | Silicone and plastic |
Compatibility | Tilta Nucleus-M, Nucleus-Nano |
Dimensions | Not supplied by manufacturer |
Weight | Not supplied by manufacturer |
Packaging Info
Package Weight | 0.05 lb |
Box Dimensions (LxWxH) | 3.9 x 3.75 x 0.5" |
Tilta Nucleus-M D-Tap To 7-Pin Motor Power Cable Specs
Connectors | D-Tap, 7-pin LEMO-type |
Length | 23" / 58.4 cm |
Weight | 1.1 oz / 32 g |
Packaging Info
Package Weight | 0.13 lb |
Box Dimensions (LxWxH) | 6.25 x 5.75 x 1.15" |
Tilta Nucleus-M 7-Pin Motor-To-Motor Connection Cable (21.65") Specs
Material of Construction | Aluminum Alloy, Copper, Rubber |
Connectors | 7-Pin |
Length | 21.65" / 55.0 cm |
PackagingInfo
Package Weight | 0.095 lb |
Box Dimensions (LxWxH) | 4.85 x 2.8 x 0.6" |
Tilta Nucleus-M Follow Focus Marking Disk Specs
Material of Construction | ABS plastic |
Dimensions and Weight | Not specified by manufacturer |
Packaging Info
Package Weight | 0.05 lb |
Box Dimensions (LxWxH) | 2.75 x 2.75 x 0.5" |
Tilta Lanyard For Nucleus-M FIZ Hand Unit Specs
Dimensions | Not specified by manufacturer |
Packaging Info
Package Weight | 0.09 lb |
Box Dimensions (LxWxH) | 4.75 x 3.05 x 1.25" |
Tilta Nucleus-M Battery Charger Specs
Power Input | 100-240 VAC, 50/60 Hz, 0.15 A |
Power Output | 4.2 VDC, 650 mAh |
Material of Construction | Plastic |
Packaging Info
Package Weight | 0.6 lb |
Box Dimensions (LxWxH) | 7.5 x 5.8 x 1.7" |
