Blackmagic URSA Cine Studio Viewfinder

Name: Blackmagic URSA Cine Studio Viewfinder
Brand: Blackmagic Design
SKU: 9 338716010688
Price: 1495.0 USD
Availability: InStock

Transform URSA Cine into a live production camera with digital film quality! Get a bright 7″ touchscreen, sunshade, DisplayPort, adjustable mount, and knobs for brightness, contrast and focus peaking.

Non-returnable

$1,495.00

Customize

Available Offer

Product Details

Description

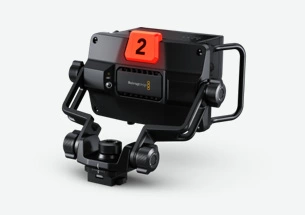

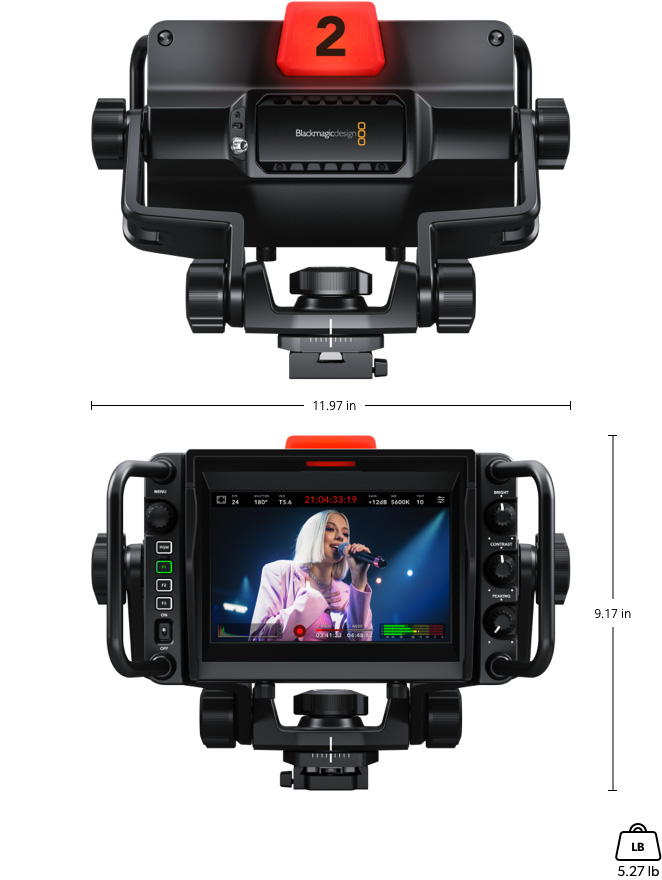

Blackmagic URSA Cine Studio Viewfinder is a large 7″ HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.

Download Manual Download Software

Connections

USB-C with Locking Connector

Video, power, metadata, camera control and software updates.

Screen Dimensions

7" 1920 x 1200 resolution.

Screen Type

7" high brightness TFT LCD

Screen Brightness

2000 nits

Power

5.5mm locking barrel socket supports +12V to +17V DC power.

Features

Display Size

7 inch.

Display Resolution

1920px x 1200px.

Display Type

LCD capacitive touchscreen.

Display Brightness

2000 nits.

Frame Rates

Up to 60fps.

Handles

Built in grab handles for positioning the monitor independently from the camera.

Position Adjustment Options

Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments.

Sunshade

Detachable and foldable sunshade

Mounting Options

Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body.

Tally

Large talent facing LED tally light with customizable perspex camera numbers.

Metadata Support

Viewfinder supports all camera metadata and full Blackmagic OS camera control.

Control

Controls

Touch screen with heads up display and full camera control,

Push button dial for settings and navigating menus,

Customizable short cut function buttons,

Dedicated brightness, contrast and peaking knobs.

On Screen Controls

Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.

Button Controls

Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button.

Function Button Toggle

Clean Feed

Status Text

Display LUT

Frame Guides

Focus Assist

False Color

Zebra

Grid

Safe Area Guide

Off Speed Rec

Focus Zoom

Focus

Record

Auto White Balance

Color Bars

Playback

False Color + Zebra

OIS

Stream

Still

Mounting

Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws.

Compatible Cameras

Blackmagic URSA Cine 12K LF 100G

Blackmagic URSA Cine 12K LF

Blackmagic URSA Cine 17K 65

Blackmagic URSA Cine Immersive 100G

Blackmagic URSA Cine Immersive

Operating Systems

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows 11

Power Requirements

Powered over USB-C. An additional +12V DC input allows for supplementary power when USB-C power is insufficient.

Power Input

USB-C via Blackmagic camera Viewfinder connections.

5.5mm barrel connector with locking thread supports +12V to +17V DC power input range.

Power Usage

TBA

Physical Specifications

Environmental Specifications

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic URSA Cine Studio Viewfinder

Monitor Mounting Plate

Welcome wallet with QR code for software download

Warranty

Product Warranty

1 Year Limited Manufacturer’s Warranty.
