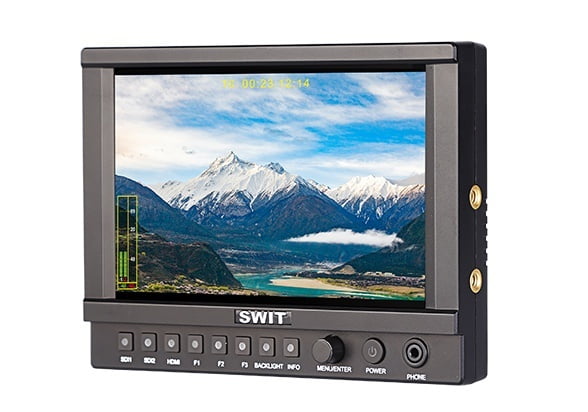

Swit CM-S73H 7-inch 3000nit Super Bright LCD Monitor (Luxury Package)

Size

7 inches

Display Area

151.2×94.5mm

Resolution

1920×1200

Aspect Ratio

16:9 (4:3 adjustable)

Brightness

Max 3000cd/m2

Contrast

1200:1

Colour

16.77 million colors

Viewing Angle

Horizontal: 160°; Vertical: 160°

Input

BNC x 2

2K/3G/HD/SD-SDI input

HDMI x 1

HDMI 2.0 input

USB x 1

Firmware upgrade

RS485 x 1

GPI (Tally) input

Output

BNC x 1

2K/3G/HD/SD-SDI loop output

HDMI  x 1

HDMI 2.0 loop output

3.5mm x 1

SDI, HDMI embedded audio output

Video Format

SDI

• SMPTE 2048-2: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (60 / 59.94 / 50）
• SMPTE-425M-A/B:1080p (60 / 59.94 / 50)
• SMPTE-274M:1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-RP211:1080psf (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-296M:720p (60 / 59.94 / 50)
• SMPTE-125M:480i (59.94)
• ITU-R BT.656:576i (50)

HDMI

4096×2160p (60 / 50 / 30 / 25 / 24)

3840×2160p (60 / 50 / 30 / 25 / 24)

480i/ 576i / 480p / 576p

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

Working voltage

DC / battery 6.5V-17V

Power consumption

≤26W

Working temperature

-10°C～+50°C

Working humidity

10%～90%

Storage temperature

-15°C～+60°C

Storage humidity

10%～90%

Dimensions

187×137×41mm

Net weight (main body)

500g
