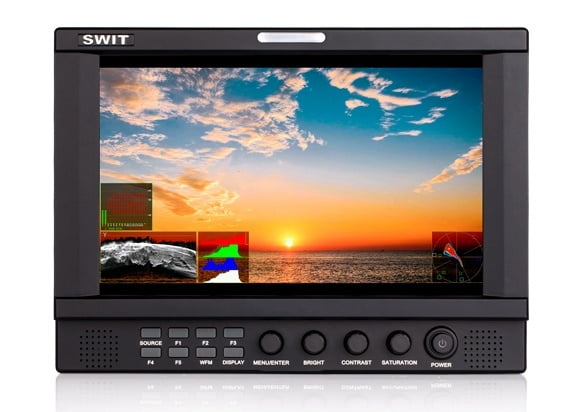

Swit S-1093F (Simple package) 9-inch Full HD Reference LCD Monitor
LCD Performance |
|
Size | 9 inches |
Display area | 191.52×119.70mm |
Resolution | 1920×1200 |
Aspect ratio | 16:9 (4:3 adjustable) |
Brightness | 450cd/m2 |
Contrast | 800:1 |
Color | 16.77 million colours |
Viewing angle | Horizontal: 170°Vertical: 170° |
Input | |
BNC ×2 | 2K/3G/HD/SD-SDI input ×2 |
BNC ×1 | Composite input |
HDMI ×1 | HDMI input |
3.5mm ×1 | Analog audio input |
Output | |
BNC ×2 | 2K/3G/HD/SD-SDI loop output ×2 |
BNC ×1 | Composite loop output |
HDMI ×1 | HDMI loop output |
3.5mm ×1 | SDI, HDMI, Analogue audio output |
Video Format | |
CVBS | |
SDI | SMPTE ST 2048-1: 2011 |
SMPTE-425M | |
SMPTE-274M | |
SMPTE-RP211 | |
SMPTE-296M | |
SMPTE-125M | |
ITU-R BT.656 | |
NTSC∕PAL | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
1080p (60 / 59.94 / 50) | |
1080i (60 / 59.94 / 50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
720p (60 / 59.94 / 50) | |
480i (59.94) | |
576i (50) | |
HDMI | 480i/ 576i / 480p / 576p |
1080i (60 / 59.94 / 50) | |
720p (60 / 59.94 / 50) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
General | |
Working voltage | DC / battery 6.5V-24V |
Power consumption | ≤18W |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 241×178×52mm |
Net weight (main body) | 960g |
