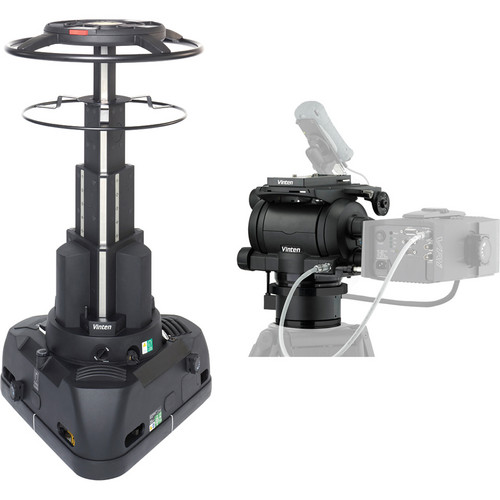

Vinten Vector 430i, VRi Box, Quattro SE and pan bar mounted PDA Package

Maximum Load Capacity

187 lb (85 kg)

On-Shot Stroke

39.4" (100 cm)

Transit Doorway Width

With Small Steering Ring: 29.3" (74.5 cm)
With Large Steering Ring: 32.3" (82.0 cm)

Clearance

Ground Clearance: 0.8" (2.0 cm)

Cable Guards

Single point action

Repeatability

X & Y +/- 70 mm +/- 1° (triangle move)

Degrees of Freedom

Pedestal Only: 4 (X, Y, Z, and base orientation)
Included in Serial Protocol Output: 4 (P, T, Z, and F)

Resolution

X, Y, Z: ± < 1 mm
Orientation: ± 0.02°

Maximum Height

58.9" (149.8 cm)

Minimum Height

19.6" (49.8 cm)

Weight

300.6 lb (136.4 kg), without trim weights

Interface

Direct interface for lenses

Fixing Center

Standard Vinten accessory mount bars, 25, 50, 75 or 100 mm centers

Connectors

1 x Genlock, input
2 x Genlock, output
1 x Devicelink.i
1 x Lens encoders (quadrature)
1 x Quatrature heads input
1 x GUI input
1 x Jib input (quadrature input for elevation and azimuth on selected jibs)
2 x Ethernet
1 x USB

Power

Power In: 110-250 VAC or 9-28 VDC, power consumption 80 W
Power Out: 12 VDC @ 1 A / 24 VDC @ 1 A

Payload

22.0 to 94.8 lb (10 to 43 kg)

Tilt Range

@ 81.6 lb (37 kg): ±90°
@ 94.8 lb (43 kg): ±40°

Pan Resolution

1.48 million counts per 360°

Tilt Resolution

1.48 million counts per 180°

Power Requirements

5 VDC ±10% (supplied by VRI box)

Platform Adjustment

+2.2 to -4.9" (+5.5 to -12.5 cm)

Pan Bar

Single telescopic

Camera Fixing

EFP Quickfit Automatic Adapter [3761-3]

Levelling Bubble

Illuminated

Drag Knobs

Backlit and calibrated

Counterbalance

Fully variable with digital readout

Base Fixing

4-bolt flat with Quickfix groove

Dimensions

7.9 x 7.9 x 11.2" (20 x 20 x 28.5 cm)

Weight

26.7 lb (12.1 kg), including wedge adapter and pan bar
