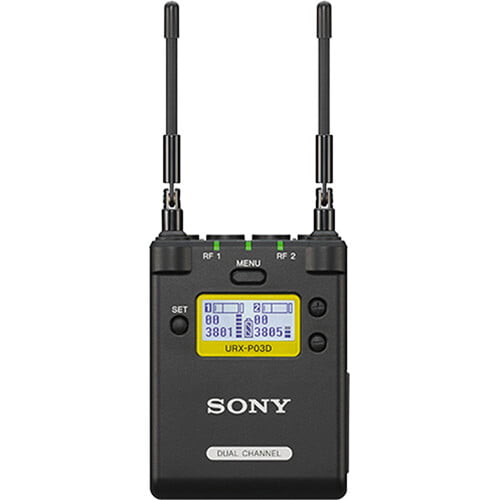

Sony URX-P03D Two-Channel Receiver for UWP-D Systems

Wireless Transmission

Analog UHF

Diversity

Space Diversity, True Diversity

RF Frequency Band

14:
470 to 542 MHz

RF Bandwidth

72 MHz

Latency

0.37 ms

Modulation

FM

Form Factor

Camera-Mount

Mounting Options

Shoe-Mount (with Included Hardware)

Antenna

2 x 1/4 Wave Wire, Fixed (Top-Mount)

Number of Audio Channels

2

Audio I/O

2 x 1/8" / 3.5 mm TRS Female Balanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Male Headphone Output

Audio Output Level

1/8" / 3.5 mm Output:
-60 dBV (Balanced)

Frequency Response

40 Hz to 18 kHz

USB/Lightning Connectivity

1 x Micro-USB (Bus Power, Charging)

Squelch

Adjustable, 15 dBμV

Power Requirements

Battery, Bus Power (USB)

Battery Type

2 x AA (Not Included)

Approx. Battery Life

5 Hours (Alkaline)

Display & Indicators

1 x LCD (Battery Status, Channel, Group, Peak, RF Level)

Housing

Metal

Operating Temperature

32 to 122°F / 0 to 50°C

Storage Temperature

-4 to 131°F / -20 to 55°C

Dimensions

2.5 x 3.2 x 1.1" / 63 x 82 x 28.4 mm (without Antennas)

Weight

5.6 oz / 160 g (without Batteries)

Package Weight

Box Dimensions (LxWxH)

9.95 x 5.85 x 3.65"
