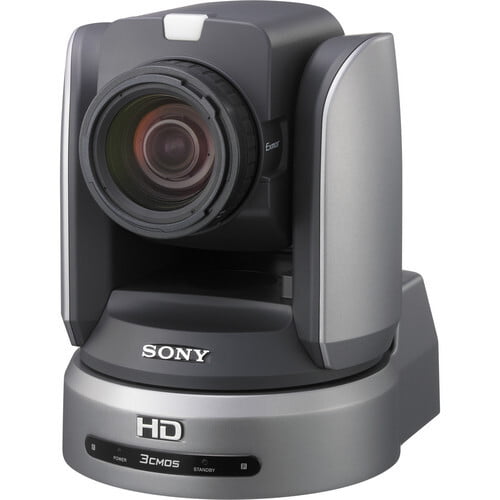

Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera

Camera

Sensor

1/2" Exmor 3CMOS Image Sensor

Resolution

Approx. 2.07 Megapixels

Signal System

60 Hz
1080/59.94i
720/59.94p
NTSC

50 Hz
1080/50i
720/50p
PAL

Horizontal Resolution

> 1000 TV Line (HD-SDI Output) (Center)

Minimum Illumination

4 lux (50 IRE, f/1.9, +24dB)

Shutter Speed Range

1/8000 to 1/60

1/8000 to 1/50

Gain

Auto, Manual
-3 to 24 dB

White Balance

Settings
Auto / Outdoor / Indoor

Method
One-push / Manual

Gamma Curve

STD 1
STD 2
STD 3
STD 4
CINE 1
CINE 2
CINE 3
CINE 4

Image Stabilization

SteadyShot
On / Off

Image Flip

Selectable On / Off

Video Signal-to-Noise Ratio

50 dB

Sync Input

External
1 x BNC 75 Ω

Synchronization System

Internal / External

HD

SDI
1 x BNC
HD / SD Switchable

RGB/Component
1 x D-Sub 15 Pin
Component (Y/Pb/Pr)
RGB
HD
Bi-Level VD
Tri-Level SYNC

SD

1 x BNC Composite
1 x S-Video Y/C

Camera Control

Mini DIN 8 Pin
1 x RS-232C (VISCA IN )

Mini Din 8 Pin
1 x RS-232C (VISCA OUT)

Connector Plug 9 Pin
1 x RS-422 (VISCA IN / OUT)

Optical System

Lens

Focal Length
f="5.8-81.2mm" (f/1.9-f/2.8)

Zoom Ratio
14x Optical Zoom

Minimum Object Distance
31.5" (80 cm)

Horizontal Viewing Angle
59.6° at the Wide End of the Lens

Focusing System
Auto / Manual

Mechanical Specification

Pan/Tilt

Pan Angle
-170 to +170°

Tilt Angle
-30 to +90°

Pan/Tilt Speed
0.22 to 60°/sec

Preset Positions
16

Presets

Number of Programmable Position Presets
16

Included
Presets 1-6 available using the included Remote Commander

Optional
Presets 7-16 require the use of the optional RM-BR300

Tally Light

Quantity
2

Location
1 x Front
1 x Rear

Expansion Slot

1 x Available Slot

Card Options
HD/SD-SDI Output Card - BRBK-HSD2
Analog SD Output Card - BRBK-SA1
HD Optical Multiplex Card - BRBK-SF1
IP Control Interface Card - BRBKIP10

Mounting Options

Mounting

Less than ±15° to the horizontal surface

Ceiling Mount Bracket

2 x Brackets Included

Note: When installing to ceiling or shelf, use included wire rope for safety, and confirm that ceiling or shelf can support 132 lb (60 kg)

Desktop Mounting

Install on a solid level flat surface, ensure camera does not fall

Tripod Mount

2 x 1/4"-20 Threaded Female Receiver

General

Temperature

Operating Temperature
32 to 104°F (0 to 40°C)

Storage Temperature
-4 to 140°F (-20 to 60°C)

Power Requirements

10.8 to 13.2 VDC

Power Consumption

Without Optional Cards
28.8 W

With Optional Cards
34.2 W

Dimensions (WxHxD)

7.83 x 10.25 x 9.38" (20 x 26 x 24 cm)

Weight

11 lb (5.0 kg)

Package Weight

19.1 lb

Box Dimensions (LxWxH)

17.5 x 15.2 x 11.8"
