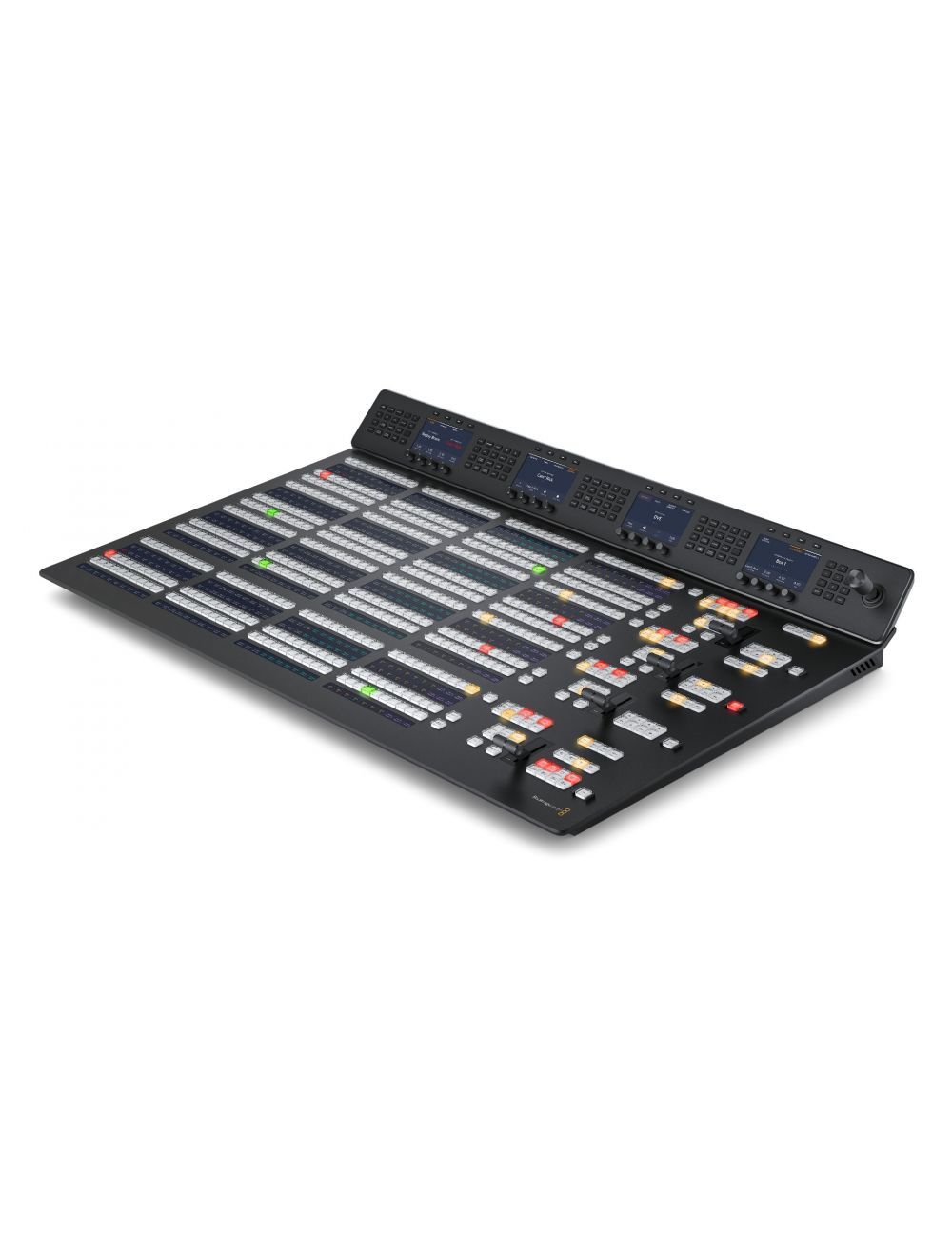

Blackmagic Design ATEM 4 M/E Advanced Panel 40
$18,485.00
Tags:
The Blackmagic Design ATEM 4 M/E Advanced Panel 40 is a perfect match for the ATEM Constellation switcher. It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row.
Product Details
SPECIFICATION
- Connections
- Ethernet: 4 x 10/100/1000 BaseT with loop output
- for additional control panels or computers.
- Software Updates: 1 x USB-C for firmware updates.
- Product Specifics
- Number of Mix Effects Rows: 4
- Direct Cross Points: 40
- Shifted Cross Points: 80
- Crosspoint Button Type: Tri-Color LED
- Crosspoint Label: 10 rows 24 character LCD
- Next Transition Selectors: 4 x BKG, Key 1 - Key 4.
- On-Air indicator: 20
- Power Status Indicators: None
- DSK Transition Selectors: Auto, Cut, Tie/Preview x 4
- Preview Transition: 4
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 4
- Menu Control: 20 buttons x 4
- Dedicated Macro Buttons: 4 x 40
- Transport Control Buttons: 24
- Destination Bus: 4
- Source Select Bus: 4
- Fader Bar: 4
- 3 Axis Joystick: 1
- Numeric Keypad: 1
- Software
- Software Applications: ATEM Software Control Panel.
- Operating Systems
- Mac 10.14 Mojave,
- Mac 10.15 Catalina or later.
- Windows 10, 64-bit.
- Power Requirements
- Input Voltage: 2 x Internal 100 - 240V AC.
- Redundant Power: Yes
- Power Usage: 250W
- Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: Up to 95%
