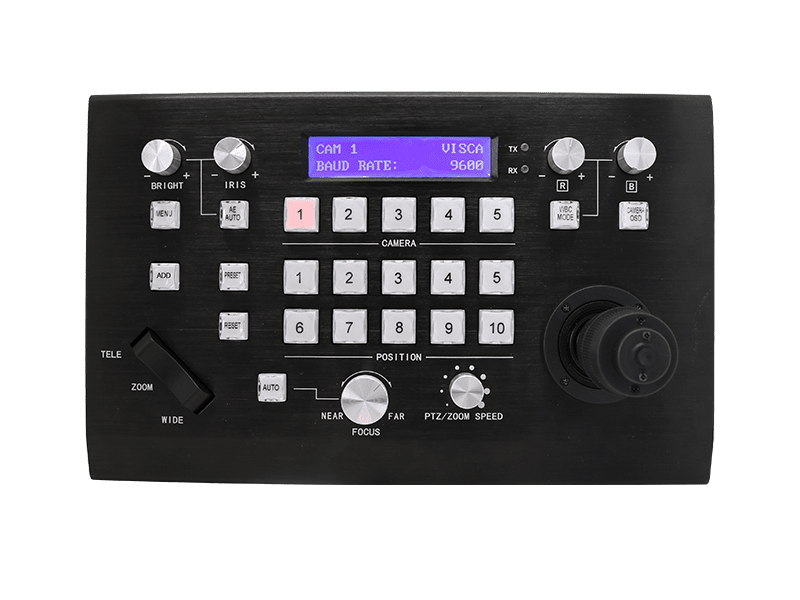

Katovision KT-510C PTZ Camera Joystick Keyboard IP Controller
$1,099.00
Product Details
SPECIFICATION
| Input And Output | RS232/485: RJ45 x5(CH1-CH5) RS-232: DB9 x1 RS422: 5pin x1 LAN: RJ45 x1 |
| Serial Port Baud Rate | 2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422) |
| Monitor | 3 inch LCD, support Chinese and English display |
| Speed Control | Buttons control(corresponding to PTZ, zoom) |
| 3D Joystick | Yes, support PTZ control |
| Camera Control | |
| Maximum Control Quantity | IP: 255, VISCA: 7 x5, Pelco P/D: 10 x5 |
| Control Protocol | IP: Visca Over IP, Onvif, NDI (Optional) RS-232/RS-422/485：Visca, Pelco P/D |
| Exposure Mode Selection | Support |
| Aperture Value Adjustment | Support |
| Brightness Value Adjustment | Support |
| Shutter Speed Adjustment | Nonsupport |
| Backlight Compensation switch | Support |
| White Balance Mode Selection | Support |
| R, B Gain Adjustment | Support |
| Focus Mode Selection | Support |
| Manual Focus | Support |
| General Indicators | |
| Input Voltage | DC 12V (10.8V~13.2V),POE（IP） |
| Power Consumption | 2W |
| Operating Temperature | 0°C~40°C,（32°F~104°F） |
| Storage Temperature | -20°C~60°C,（-4°F~140°F） |
| Size | 296mm x 180mm x 115mm |
| Weight | 1.5kg |
| Standard Accessories | Power Adapter(110V AC~220V AC to 12V DC) x1, RS232 cable x1, RJ45 to DB9 RS232 cable, user manualx1 |
