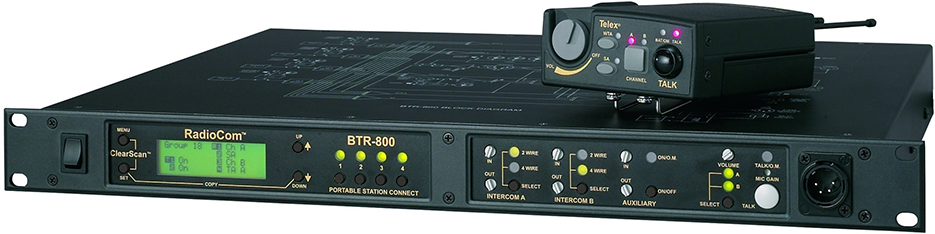

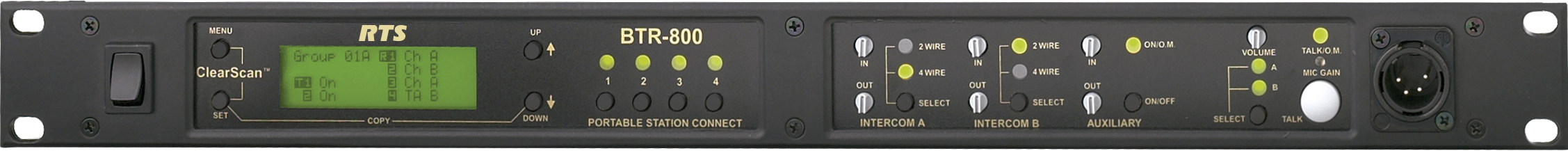

RTS BTR-800-FER5
$6,378.92
The BTR-800 wireless intercom system has set the standard for all wireless intercom systems world wide. This award winning intercom system offers two channels of full duplex audio and has been enhanced to provide more frequency band options in the ever-changing UHF RF spectrum. BTR-800-FER5 UHF base station 2ch band FE, 5F headset
Product Details
The BTR-800 system is perfectly suited for stand-alone operation and can interface with Audiocom, RTS Two-Wire Intercom, Clear-Com as well as RTS Digital Matrix Intercom systems and other four-wire communications systems. In addition to the external intercom systems interfaces listed above, the system provides connections for auxiliary balanced audio input and output, as well as wireless talk-around (WTA) and stage announce (SA) features. The RadioCom BTR series has been designed for reliable, efficient operation. Operating in the 470 to 740 MHz range, the units operate reliably at line-of-sight distances of 1,000 feet. With available antenna systems, from RadioCom, the effective operating range can be extended.
Specifications
| Frequency Band of Operation | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| Transmit Power | 100 mW Max. (High), 10 mW (Normal) |
| Power Requirements | 100-240 VAC, 50-60 Hz, IEC receptacle |
| Wireless Technology | UHF |
| Form Factor | Rackmount |
| Type | Two Synthesized Transmitters, 712 channels each |
Specifications | |
| 4-Wire Input and Output | Level Adjustable |
| Auxiliary Input | Adjustable |
| Auxiliary Output | Adjustable |
| Microphone Input Sensitivity | 9 |
| Local Headset Output | 40 mW output into 600Ω |
| Modulation Type | FM |
| Deviation | 40 kHz (35 kHz Europe) |
| RF Frequency Stability | 0.005 |
| Modulation Limiter | Peak-Responding Compressor |
| RF Frequency Range | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| FCC ID | B5DM514 |
| Stage Announce Output | Internally Adjustable |
| Stage Announce Relay | Dry contact, rated at 1 Amp, 24V Max |
| Radiated Harmonics and Spurious | Exceeds FCC specifications |
| Storage Temperature | -4°F to 130°F (-20°C to 55 |
| User Capacity | 4 |
| Battery Type | Standard Alkaline Batteries |
| Battery Life | 12 hrs |
| Frequency Response | 300 Hz-8 kHz |
| Antenna | ½ Wave (supplied), TNC Male Connector |
