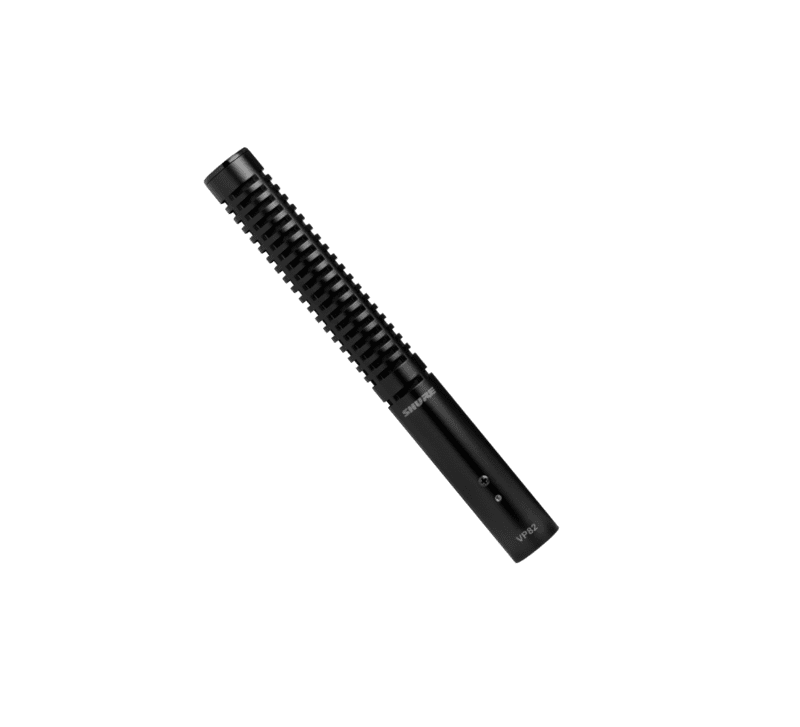

Shure VP82 Short shotgun microphone
Outfitted with a Class-A, discrete, transformer less preamplifier, the VP82 delivers a clean and quick transient response with minimal harmonic/intermodulation distortion and no crossover distortion. Since it has a standard XLR 3-pin output and supports 11 to 52 VDC phantom powering, the microphone is a great match for professional camcorders, multitrack field recorders, and portable handheld audio recorders.
Specification
Microphone
Form Factor | Stand/Boom Mount |
Sound Field | Mono |
Operating Principle | Pressure Gradient |
Capsule | 1 x Electret Condenser |
Polar Pattern | Lobar, Supercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | None |
High-Pass Filter | None |
Tone Adjustment | None |
Indicators | None |
On-Board Controls | None |
Windscreen | Foam (Included) |
Performance
Frequency Range | 90 Hz to 20 kHz |
Maximum SPL | 137.5 dB SPL (1 kHz, 1% THD, 2.5-Kilohms Load) |
Off-Axis Rejection | >3 dB at 60° |
Impedance | 144 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | -36 dBV/Pa at 1 kHz |
Output Level | 7 dBV (Max) |
Dynamic Range | 122.5 dB (1 kHz, 2.5-Kilohms Load) |
Signal-to-Noise Ratio | 79 dB A-Weighted |
Equivalent Noise Level | 15 dB A-Weighted |
CMRR | 55 dB |
Connectivity
Output Connectors (Analog) | 1 x XLR 3-Pin Male |
Headphone Connector | None |
Power
Operating Voltage | 11 to 52 V (Phantom Power) |
Operating Current Consumption | 2 mA |
Physical
Color | Black |
Mounting | Mic Clip (Included) |
Construction Material | Aluminum, Stainless Steel |
Operating Temperature | 0 to 135°F / -17.78 to 57.22°C |
Operating Humidity | 0 to 95% |
Storage Temperature | -20 to 165°F / -28 to 73°C |
Dimensions | ø: 0.87 x L: 7.68" / ø: 22 x L: 195 mm |
Weight | 2.68 oz / 76 g |
Packaging Info
Package Weight | 0.85 lb |
Box Dimensions (LxWxH) | 10.3 x 4.95 x 3.35" |
