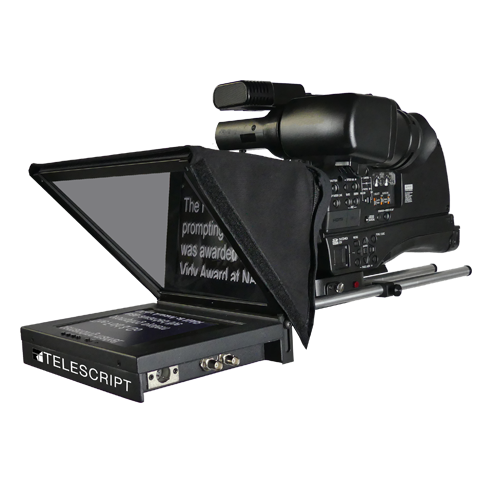

12.1” IP Studio Teleprompting System With NDI®:
$6,057.00
Tags:
12.1” Day Bright Monitor 1000nits, Prompter Monitor. Inputs: NDI®/NDI® HX, SDI, VGA, Composite & HDMI. Mounting plate, LensView Hood (hood, rods, beamsplitter and mask)
Product Details
SPECIFICATION
Telescript NDI Teleprompter Monitor Specs:
| 12.1NDI | 15NDI | 17NDI | 17.3NDI | 19NDI | 21.5NDI | |
|---|---|---|---|---|---|---|
| FULL BANDWIDTH NDI® | YES | YES | YES | YES | YES | YES |
| NDI®|HX | YES | YES | YES | YES | YES | YES |
| SUPPORTED NDI® RESOLUTIONS | RESOLUTIONS: 1920×1080, 1360×768, 1280×1024, 1280×720, 1024×768, 800×600, 1600×900 (1600×900 unavailable in NDI®|HX) FRAMERATES: Full Badwidth NDI®: 1920×1080 supports 60p, 50p, 30p, 25p. 1280×720 supports 60p, 30. All others support 60p and 30p. NDI®|HX: 1920×1080 supports 60p, 50p, 30p, 25p. 1280×720 supports 60p, 30. All others support 60p only. | |||||
| SELECTABLE NDI® TALLY SOURCE | YES | YES | YES | YES | YES | YES |
| NDI® SOURCE SELECT BUTTONS | YES | YES | YES | YES | YES | YES |
| ETHERNET PORT SPEED | 1g | 1g | 1g | 1g | 1g | 1g |
| INTERNET BROWSER ACCESSIBLE USER INTERFACE | YES | YES | YES | YES | YES | YES |
| SCREEN SIZE | 12″ (30.5cm) | 15″ (38.1cm) | 17″ (43.18cm) | 17.3″ (43.94cm) | 19″ (48.26cm) | 21.5″ (54.61) |
| RESOLUTION | 800×600 pixels (4×3) | 1024×768 pixels (4×3) | 1280×1024 pixels (4×3) | 1920×1080 pixels (16×9) | 1440×1080 pixels (4×3) | 1920×1080 pixels (16×9) |
| USEABLE RANGE | 2-25 feet | 2-35 feet | 2-40 feet | 2-35 feet | 2-40 feet | 2-45 feet |
| BACKLIGHT | LED | LED | LED | LED | LED | LED |
| BRIGHTNESS | 1000 nits | 1000 nits | 1000 nits | 350 nits | 1000 nits | 350 nits |
| IMAGE REVERSE | Vertical & Horizontal | Vertical & Horizontal | Vertical & Horizontal | Vertical & Horizontal | Vertical & Horizontal | Vertical & Horizontal |
| TYPE | Prompter | Prompter | Prompter | Reference | Prompter | Prompter & Reference |
| INPUTS | NDI via ethernet, 3G-SDI, HDMI, VGA, NTSC/PAL Composite Video, Loop | NDI via ethernet, 3G-SDI, HDMI, VGA, NTSC/PAL Composite Video, Loop | NDI via ethernet, 3G-SDI, HDMI, VGA, NTSC/PAL Composite Video, Loop | NDI via ethernet, 3G-SDI, HDMI, VGA, NTSC/PAL Composite Video, Loop | NDI via ethernet, 3G-SDI, HDMI, VGA, NTSC/PAL Composite Video, Loop | NDI via ethernet, 3G-SDI, HDMI, VGA, NTSC/PAL Composite Video, Loop |
| POWER INPUT | DC12v/4a via 4 pin XLR | DC12v/4a via 4 pin XLR | DC12v/4a via 4 pin XLR | DC12v/4a via 4 pin XLR | DC12v/4a via 4 pin XLR | DC12v/4a via 4 pin XLR |
| BATTERY OPERABLE | Yes | Yes | Yes | Yes | Yes | Yes |
| HOUSING MATERIAL | Cool Rolled Steel | Cool Rolled Steel | Cool Rolled Steel | Cool Rolled Steel | Cool Rolled Steel | Cool Rolled Steel |
| DOCUMENTATION | Product Card | Manual | Telescript NDI Spec Sheet |
