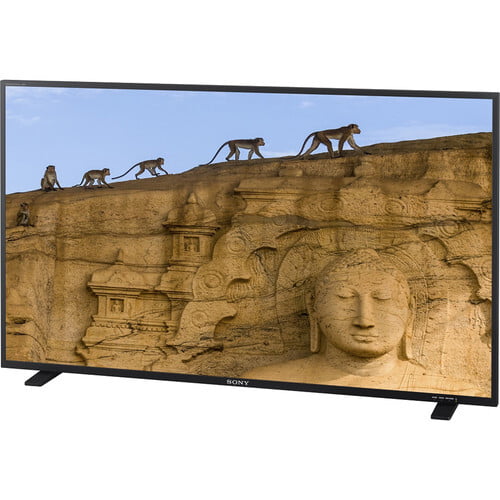

Sony PVM-X550 55" 4K Trimaster EL OLED Monitor

Panel Type

OLED

Display Size

54.6" / 138.7 cm

Active Area

47.6 x 26.8" / 120.9 x 68.1 cm

Screen Resolution

3840 x 2160

Aspect Ratio

16:9

Viewing Angle

Horizontal: 178° (89/89)
Vertical: 178° (89/89)

Maximum Brightness

100 cd/m²

Bit Depth / Color Support

10-Bit (1.07 Billion Colors)

Image Controls

Color Temperature Selection, Screen Markers

Video

8 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0a) Input
8 x BNC (3G-SDI) Output

HDCP Support

Yes, Version 2.2

Audio

1 x 3.5 mm Monitor Output

Built-In Speaker

None

Other I/O

1 x LAN (RJ45)

Card Slot

None

Video Format

SDI
DCI 4K: 24/25/29.97/30/50/59.94/60
UHD 4K: 24/25/29.97/30/50/59.94/60
1080p: 24/25/29.97/30/50/59.94/60
DCI 2K: 24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/30
1080i: 59.94/60
720p: 24/25/29.97/30/50/59.94/60

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 2.3 to 5.7 A

Battery Type

None

Power Consumption

290 W (Typical)
500 W (Maximum)

Operating Humidity

30 to 85%

Operating Temperature

32 to 95°F / 0 to 35°C
68 to 86°F / 20 to 30°C (Recommended)

Storage Humidity

0 to 90%

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (W x H x D)

48.9 x 28.3 x 3.3" / 124.2 x 71.9 x 8.4 cm
48.9 x 29 x 8.1" / 124.2 x 73.7 x 20.6 cm, Including Feet

Weight

47.8 lb / 21.7 kg

Package Weight

Box Dimensions (LxWxH)

60 x 35.25 x 9.25"
