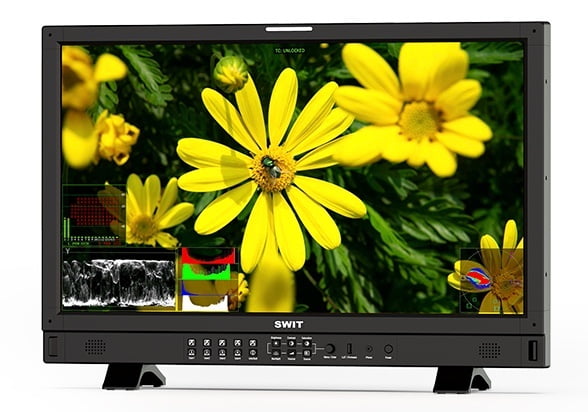

Swit BM-U245HDR 27-inch 4K/8K 12GSDI HDR Studio Monitor

LCD Performance

Size

23.8 inches

Display area

527.04×296.46mm

Resolution

3840×2160

Aspect ratio

16:09

Brightness

1000nits

Contrast

1000:01:00

Color depth

1.073G colors, 10-bit

Signal process

18-bit

Viewing angle

178°(H) /178°(V)

Input

BNC ×4

12G/6G/3G/HD/SD-SDI input

HDMI ×1

HDMI 2.0 input

SFP ×1

Optical Fiber input (By optional SFP adaptor)

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input

RJ45 ×1

1000M Ethernet input for Webserver IP control

Output

BNC ×4

12G/6G/3G/HD/SD-SDI loop output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format

SDI 1/2/3/4

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (50 / 59.94 / 60)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

1080psf (30 / 29.97 / 25 / 24 / 23.98)

720p (60 / 59.94 / 50)

480i (59.94), 576I (50)

Quad Link 4K (Each channel)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

Quad Link 8K (Each channel)

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

General

Input voltage

AC 100-240V, 50/60Hz, DC 12-17V

Power consumption

120W

Working temperature

0°C～+50°C

Working humidity

10%～90%

Storage temperature

-15°C～+60°C

Storage humidity

10%～90%

Dimensions

593×404.5×92mm

Net weight (main body)

10kg
