Dzofilm Bundle_10-24/20-70 T2.9

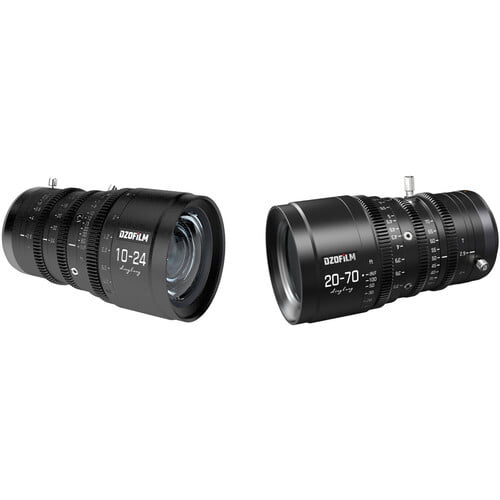

Featuring two parfocal lenses of almost identical size, this MFT Parfocal Cine Lens Bundle from DZOFilm offers a flexible and consistent workflow with focal lengths from a wide-angle 10mm to 70mm. Included are a 10-24mm and a 20-70mm cine lens for MFT-mount cameras. Both are parfocal lenses, designed to maintain focus throughout the zoom range. Both feature a T2.9 aperture, 12-blade iris, and minimal breathing.
Focal Length | 10 to 24mm |
Lens Mount | Micro Four Thirds |
Lens Format Coverage | MFT |
Image Circle | 21.6 mm |
Maximum Aperture | T2.9 |
Minimum Aperture | T22 |
Diagonal Angle of View | MFT: 92.5 to 49.3° |
Horizontal Angle of View | MFT: 79.7 to 40.3° |
Minimum Focus Distance | From : 19.7" / 50 cm |
Diaphragm Blades | 12 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
Front Diameter | 80 mm |
Filter Thread | 77 mm |
Focus Scales | Imperial |
Focus Rotation | 270° |
Iris Rotation | 70° |
Zoom Rotation | 100° |
Zoom Ratio | 2.4x |
Image Stabilization | No |
Length | 6.11" / 155.1 mm |
Weight | 2.43 lb / 1.1 kg |
Packaging Info
Package Weight | 3.82 lb |
Box Dimensions (LxWxH) | 8.8 x 5.5 x 5.4" |
DZOFilm DZO 20-70mm T2.9 MFT Parfocal Cine Lens Specs
Focal Length | 20 to 70mm |
Lens Mount | Micro Four Thirds |
Lens Format Coverage | MFT |
Image Circle | 21.6 mm |
Maximum Aperture | T2.9 |
Minimum Aperture | T22 |
Diagonal Angle of View | MFT: 57.6 to 17.9° |
Horizontal Angle of View | MFT: 47.5 to 14.3° |
Minimum Focus Distance | From : 31.1" / 79 cm |
Diaphragm Blades | 12 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
Front Diameter | 80 mm |
Filter Thread | 77 mm |
Focus Scales | Imperial |
Focus Rotation | 270° |
Iris Rotation | 70° |
Zoom Rotation | 100° |
Zoom Ratio | 3.5x |
Image Stabilization | No |
Length | 6.2" / 157.5 mm |
Weight | 2.43 lb / 1.1 kg |
Packaging Info
Package Weight | 1.6 kg |
Box Dimensions (LxWxH) | 8.8 x 5.5 x 5.5" |
