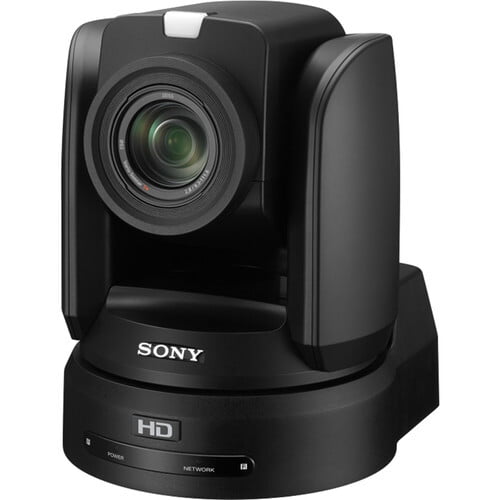

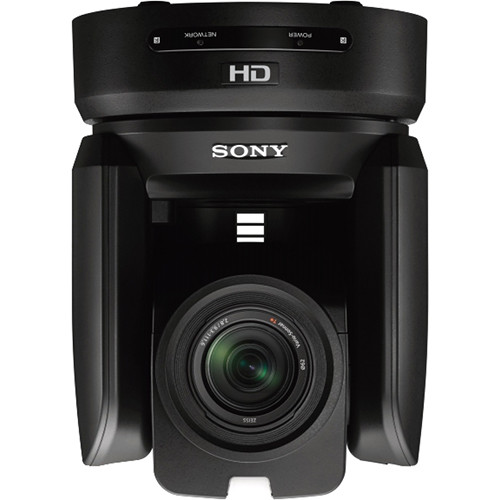

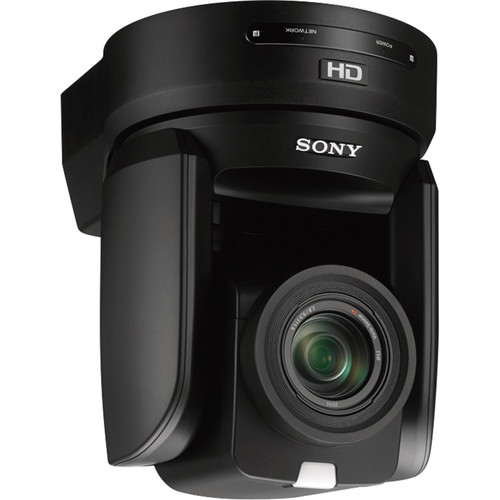

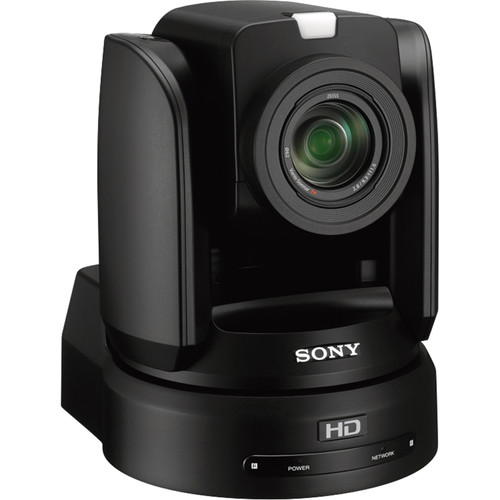

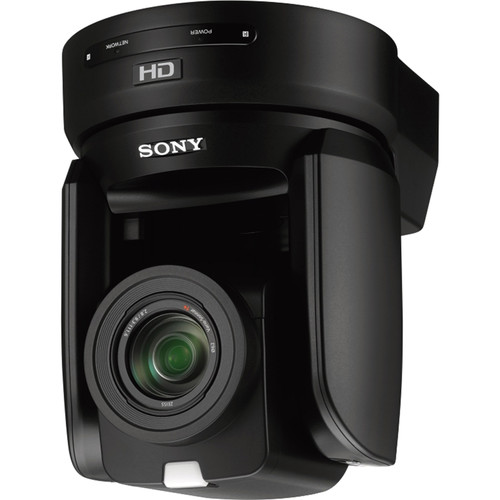

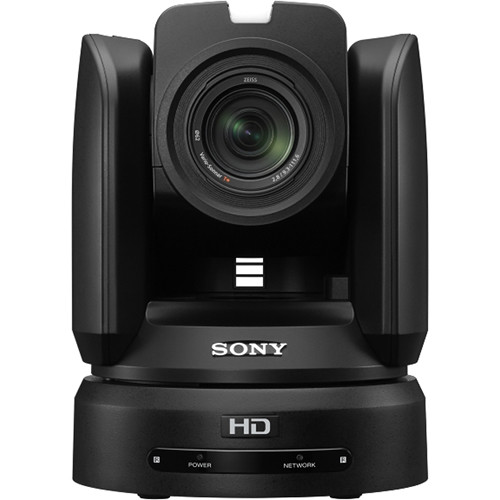

Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ (Black)

Image Sensor

1-Chip 1" CMOS Sensor

Horizontal Resolution (TV Lines)

850 TV Lines

Sensor Resolution

20.4 MP

Effective Sensor Resolution

14.2 MP

Gain

-3 to 33 dB

Minimum Illumination

1.7 Lux at 1/30 Shutter Speed

Shutter Speed

1/10000 to 1/8 sec

Max Digital Zoom

48x

Flip / Mirror Support

Image Flip

Optical Zoom Ratio

12x

Focal Length

9.3 to 111.6mm

35mm Equivalent Focal Length

29 to 348mm

Field of View

Horizontal: 64.6°

Maximum Aperture

f/2.8 to 4.5

Minimum Focusing Distance

Wide: 3.1" / 8.0 cm
Telephoto: 39.4" / 100.0 cm

Focus Control

Autofocus
Manual Focus

Broadcast System Compatibility

NTSC, PAL

Output Formats

SDI, HDMI: 1920 x 1080p at 23.98, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps

Presets

100

Move Speed

Pan: 0.03 to 60°/sec
Tilt: 0.03 to 60°/sec

Movement Range

Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)

Supported Control Protocols

IP
RS-422
VISCA

Video Output Connectors

1 x BNC (3G-SDI)
1 x HDMI Type A

Control Interface

2 x RJ45 (RS-422, VISCA)

Other I/O

1 x BNC (Sync) Input
1 x RJ45 (LAN)

PoE Support

PoE+ 802.3at

Power Connectors

1 x JEITA (10.8 to 13.2 VDC)

Power Consumption

Power Supply: 19 W
PoE: 23 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Tripod Mounting Thread

2 x 1/4"-20 Female

Certifications

TAA, as per Manufacturer

Dimensions

10.24 x 9.37 x 7.8" / 260 x 238 x 198 mm (Without Protrusions)

Weight

9.48 lb / 4.3 kg

Package Weight

16.8 lb

Box Dimensions (LxWxH)

21.9 x 18.8 x 16.7"
