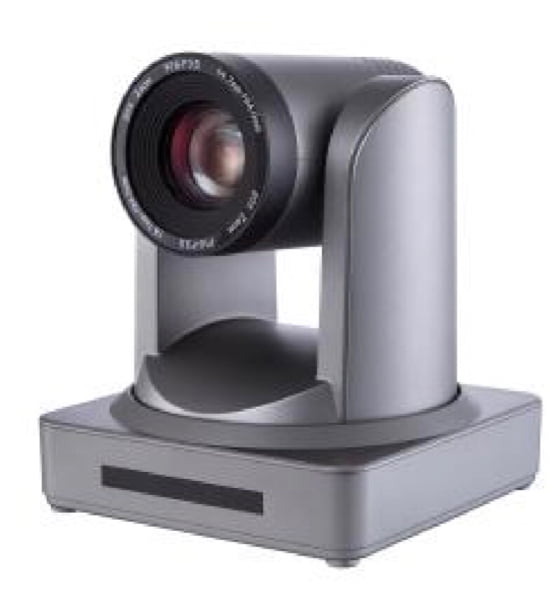

Minrray NDI PTZ Video Conferencing Camera with 30x Optical Zoom

Image Sensor

1-Chip 1/2.8" CMOS Sensor

Sensor Resolution

Effective: 2.07 Megapixel

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.1 Lux

White Balance Range

3000 to 6500K

Max Digital Zoom

10x ( in 1080p, 720p)

Optical Zoom Ratio

30x

Focal Length

4.3 to 129mm

Field of View

Horizontal: 2.34 to 65.1°

Maximum Aperture

f/1.6 to 4.7

Focus Control

Autofocus
Manual Focus

Output Formats

SDI, HDMI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps

Embedded Audio

HDMI/SDI: 2-Channel

IP Streaming

H.264, RTMP, RTSP: 1080i, 1080p, 720p

Presets

255 via IP, RS-232, VISCA
10 via IR

Move Speed

Pan: 0.1 to 60°/sec
Tilt: 0.1 to 30°/sec

Movement Range

Pan: 170° (-30 to 90°)
Tilt: 170° (-30 to 90°)

Supported Control Protocols

IP
IR
Pelco-D
Pelco-P
RS-232
RS-485
VISCA

Video Output Connectors

1 x BNC (HD-SDI) Female
1 x HDMI Type A Female
1 x RJ45 (NDI) Female

Audio I/O

1 x 1/8" / 3.5 mm Stereo Line Level Input

Control Interface

1 x 9-Pin D-Sub (Pelco-D, Pelco-P, RS-232, RS-485, VISCA) Input

Other I/O

1 x RJ45 (LAN) Input/Output

PoE Support

Yes

Power Connectors

1 x Barrel / Coaxial (12 VDC at 1.5 A)

Power Consumption

Power Supply: 110 to 220 VAC

Dimensions

6.59 x 5.91 x 5.91" / 16.75 x 15 x 15 cm

Weight

3.09 lb / 1.4 kg
