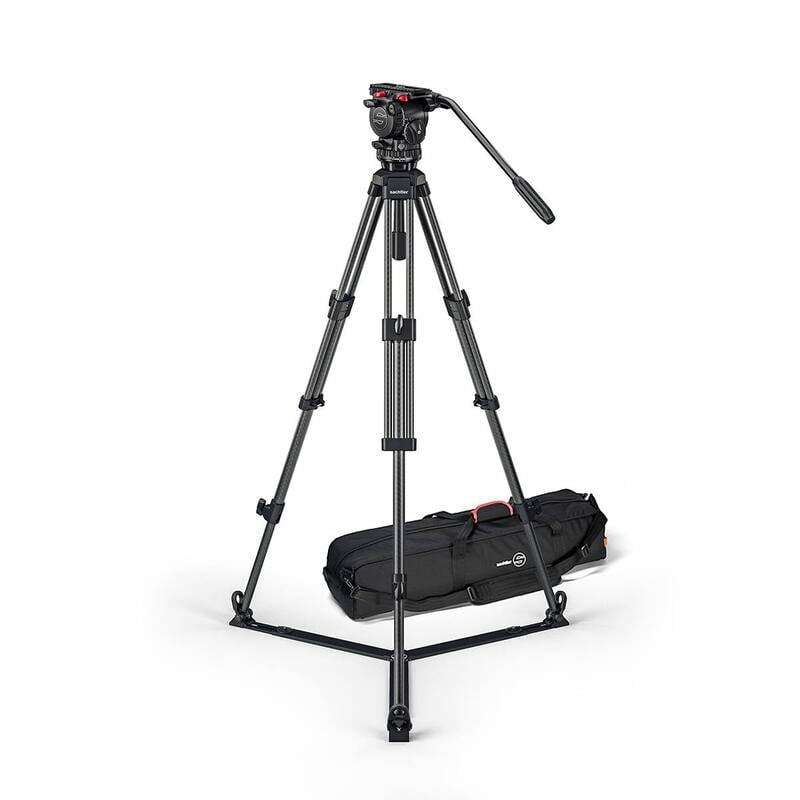

Sachtler System FSB 6 Mk II 75/2 CF GS

$2,088.84
FSB 6 Mk II fluid head (S2065-0001) + tripod 75/2 CF + ground spreader SP 75 (7001) + padded bag DV 75 S (9108)

Travel light, set up fast, and create fast or slow smooth pan and tilts when shooting with camera setups weighting up to 17.6 lb with this Sachtler System FSB 6 Sideload and 75/2 Carbon Fiber Tripod Legs with Ground Spreader and Bag. The system is lightweight and travels packed in an included bag for ease of travel. It provides a stable shooting platform for cinematic pans and tilts. The Sideload S camera plate securely locks your camera to the head by popping it in from above for fast attachment. The plate provides 4.7" of travel for balancing your camera on the head, with 15-steps of counterbalance, three independent fluid drag settings for pan and tilt, and a 0 setting for all, which allows you to tune the head to match the needs of your shot for smooth operating and cinematic camera moves.

The head allows you to tilt forward so you can tilt straight down and tilt almost straight up as well, plus the 75mm half-ball has an integrated flat base for additional mounting options. The two-stage carbon fiber legs are strong, stable, and corrosion resistant especially against seawater, while being lightweight and easy to use. The system has a generous height range of 23.2 to 68.9" for low- and high-angle shots when using the included ground spreader. The legs feature a 75mm bowl base for quick leveling of your head and collapse down to just over 34" in length for travel.

Sachtler FSB 6 MK II Fluid Head with Sideload Mechanism

Fast to work with and lightweight at only 5.5 lb, the Sachtler FSB 6 MK II Fluid Head with Sideload Mechanism supports up to 17.6 lb of camera and accessories, and with its 15-steps of counterbalance adjustment, you can tune the head to work with the lightest of cameras. The head features a 75mm ball for quick leveling, and the independent drag adjustment and tilt locks permit you to adjust and move the head with precision to tune it to match the needs of your shot.

The head allows you to tilt forward so you can tilt straight down and tilt almost straight up as well. Pan and tilt have three independent drag settings, plus a zero setting for no drag at all. Borrowing from the aktiv system, the bubble level has been improved, not only is it illuminated, but now you can see the bubble level from the side, as well as when looking down on the head, for intuitive leveling from almost any position.

15-Step Counterbalance

The 15-step counterbalance settings let you adjust the head to neutralize the weight of cameras up to 17.6 lb, so the head remains in the position you set it and does not tilt forward of back because of the weight of your camera. This allows you to tune the head to match the weight of your cameras, allowing you to work equally well with extremely lightweight cameras as well as cameras weighing up to 17.6 lb. The zero setting provides you a completely free movement if you want.

Frictionless Leak-Proof Fluid Damping

Frictionless leak-proof fluid damping with 3 x levels of drag, for smooth pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning

Quick Release

The FSB 6 MK II features Sachtler's Sideload mechanism, which allows you to pop the plate in above instead of trying to slide it in from the edge, and it boasts an exceptionally large sliding range of 4.7"

Sachtler Spreader SP 75 Ground Tripod Spreader

The Sachtler SP 75 Ground Tripod Spreader fits all 75mm tripods except flowtech, Soom, and Ace M/MS, and it's used when shooting on a level surface such as a studio, city street, office, sports field, or stadium. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. The SP 75 spreader attaches directly to the bottom of a tripod's feet and its telescopic arms allow for the extension of the legs.

Sachtler DV 75 S Padded Bag

The Sachtler DV 75 S Padded Bag is a soft tripod bag designed to carry the Sachtler ENG 75/2 D tripod with various DV heads. The case can be carried by the interlocking handles or with the attached shoulder strap.

Soft padded tripod carry bag

Carried by interlocking handles or attached shoulder strap

For fluid heads FSB and Cine DSLR on tripods Speed Lock 75 CF and ENG 75/2 D



Quantity
Add to Cart
Product Details

Specification


Camera Plate

Camera Plate Features

Quick Release, Sliding Balance Plate

Camera Plate Type

Sideload Plate S

Balance Plate Sliding Range

4.68" / 118.87 mm

Safety Lock

Yes

Tripod Platform

Base Mount

75 mm Half Ball

Pan & Tilt

Drag Control

Tilt: 3-Step Plus 0

Drag Type

Fluid

Vertical Tilt

+90° to -70°

Panning Range

360°

Independent Pan Lock

Yes

Independent Tilt Lock

Yes

Physical

Load Capacity

0 to 17.6 lb / 0 to 8 kg

Counter Balance

Incremental 15-Step

Pan Handle Fittings

2 x Rosette

Bubble Level

1 x Illuminated

Operating Temperature

-40 to 140°F / -40 to 60°C

Weight

5.5 lb / 2.5 kg

Packaging Info

Package Weight

7.81 lb

Box Dimensions (LxWxH)

18.2 x 9.7 x 8.2"

Sachtler Spreader SP 75 Ground Tripod Spreader Specs

Payload

88.2 lb / 40 kg

Construction

Plastic
Rubber

Type

On-Ground

Adjustable

Yes

Minimum Length

13.0" / 33.0 cm

Maximum Length

22.8" / 57.9 cm

Weight

1.3 lb / 589.7 g

Packaging Info

Package Weight

1.655 lb

Box Dimensions (LxWxH)

14.8 x 4.95 x 4.55"

Sachtler DV 75 S Padded Bag Specs

Carrying/Transport Options

Connecting Handles, Shoulder Strap

Type of Closure

Zipper

Exterior Material

Cordura

Padded

Yes

Exterior Dimensions

H: 8.3 x W: 7.1 x L: 36.2" / H: 21.1 x W: 18.0 x L: 91.9 cm

Interior Dimensions

L: 33.5" / L: 85.0 cm

Weight

2.2 lb / 1 kg

Packaging Info

Package Weight

4 lb

Box Dimensions (LxWxH)

38 x 9 x 5"
