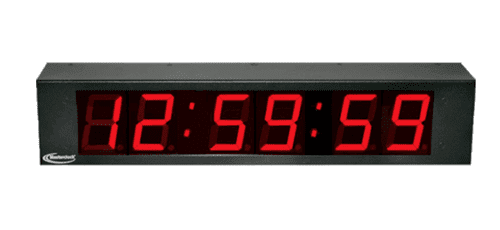

MASTERCLOCK TCDS26 2.3-Inch (5.8 Cm) TCDS Series TC Digital Clocks
Masterclock’s TCDS digital clocks sync to IRIG-B, SMPTE and EBU time codes for accurate traceable time. Each unit configures to time zone and daylight savings time parameters. WinDiscovery software is included. Count down or count up capable with the RC600.
FEATURES
- 2.3-in (5.8 cm) 6-digit LED display available in red, green, blue, amber or white
- Reads IRIG-B, SMPTE 12M, 309M, 24/25/30 fps, 29.97 drop frame
- Retains time and date during loss of power and/or reference using a battery backed real-time clock (RTC) chip and maintenance-free rechargeable battery
- Configures to time zone and daylight saving time parameters
- WinDiscovery software utility included - provides easy configuration of clocks
- Configuration is saved to non-volatile memory and survives power losses
- Password protection prevents unauthorized clock configuration tampering
- Display time in 12- or 24-hr format – hh:mm:ss
- Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd
- Configurable to alternate showing date and time automatically
- Adjustable brightness levels with auto-dimming option
- Visibility: 100 feet (30 meters)
- Wall-mount bracket
- Dry contact relay option
- PM indicator
SPECIFICATIONS
Connectors
> BNC female
> 3-pin terminal block
> USB for configuration
> DC input - 2.1 mm female
> IEC Stnd A/C Power
Power
> Choice of – IEC AC or DC (24 VDC)
> International IEC AC 90-240v, 50/60 Hz
> Power consumption <15W
Operating Parameters
> Temperature: 0 to 60°C
> Humidity: Up to 90% (non-condensing)
Physical
> Black powder-coated steel chassis
> Size: 17w x 3.5h x3d in (43.2w x 8.9h x 7.6d cm)
> Weight: 8.0 lbs (3.63 kg)
Compliance
> FCC, ROHS, CE Marked, ANSI
