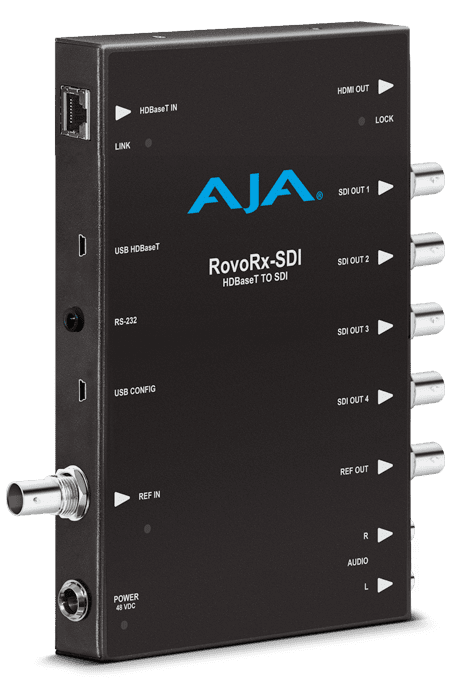

AJA ROVORX-SDI
$1,245.00
Tags:
RovoRx-SDI is an UltraHD/HD HDBaseT Receiver with four integrated 6G/3G-SDI outputs and HDMI video and audio outputs specifically designed to receive RovoCam’s output.
Product Details
SPECIFICATION
Video Formats
- (UltraHD) 3840 x 2160p 25, 29.97
- (HD) 1080p 50, 59.94
- (HD) 1080i 50, 59.94
- (HD) 720p 50, 59.94
- (SD) 625i
- (SD) 525i
Video Input
- HDBaseT (RJ-45), Analog Video reference terminating input
- REF IN supports tri-Level and bi-level sync (SDI outputs only)
Video Outputs
- HDMI 1.4b, No EDID negotiation, No embedded audio
- 6G-SDI output on SDI 1-4
- 4x 6G-SDI while in "DA Mode"
- (UltraHD) 3840 x 2160p 25, 29.97
- (UltraHD) 4:2:2 or 4:4:4 (4x BNC)
- (UltraHD) LFR 3.0 GB 2SI (2x BNC)
- (UltraHD) LFR 1.5 GB 2SI (4x BNC)
- 3G-SDI (Level A or B)
- (HD) 1920 x 1080p 50, 59.94
- HD-SDI
- (HD) 1920 x 1080i 50, 59.94
- (HD) 1280 x 720p 50, 59.94
- SD-SDI
- (SD) 625i 50
- (SD) 525i 59.94
Video Displays
- HDBaseT Cable Run Performance for 4K/UltraHD/HD
| W x H | Frame Rate | Color Sampling | Max. Cable Length | Max. Bit Depth | |
|---|---|---|---|---|---|
| Cat 5e/6 | Cat 6a/7 | ||||
| 1920 x 1080 | < 30 fps | 4:2:2 | 100 meters | 100 meters | 16-bit |
| > 30 fps | 4:2:2 | 100 meters | 100 meters | 12-bit | |
| 4:2:2 | 70 meters | 100 meters | 16-bit | ||
| 2048 x 1080 | < 30 fps | 4:2:2 | 100 meters | 100 meters | 16-bit |
| > 30 fps | 4:2:2 | 100 meters | 100 meters | 12-bit | |
| 4:2:2 | 70 meters | 100 meters | 16-bit | ||
| 3840 x 2160 | < 30 fps | 4:4:4 | 70 meters | 100 meters | 8-bit |
| > 30 fps | 4:2:0 | 70 meters | 100 meters | 8-bit | |
| 4096 x 2160 | < 30 fps | 4:4:4 | 70 meters | 100 meters | 8-bit |
| > 30 fps | 4:2:0 | 70 meters | 100 meters | 8-bit |
Audio Output Digital
- 2-channels (1 pair) of SDI embedded audio supported
- Rates supported: 48 kHz
Note: No Audio on HDMI output
Audio Output Analog
- 2x RCA connectors, 2-Channel unbalanced
Note: This feature only works when used in conjunction with RovoCam Audio
RS-232
- 1x 3.5mm TRS Input for RS-232 bidirectional signals
USB Config
- 1x USB for configuration with AJA Mini-Config
Size (w x d x h)
- 4.66” x 6.97” x 0.94” (118.37 x 177.04 x 23.88 mm)
Weight
- 0.8 lbs (0.4kg)
Power
- RovoRx-SDI only: 48V @ 303mA = 14.5W typical, 48V @ 335mA = 16W max
- RovoRx-SDI powering RovoCam: 48V @ 450mA = 21.6W typical, 48V @ 480mA = 23W max
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
