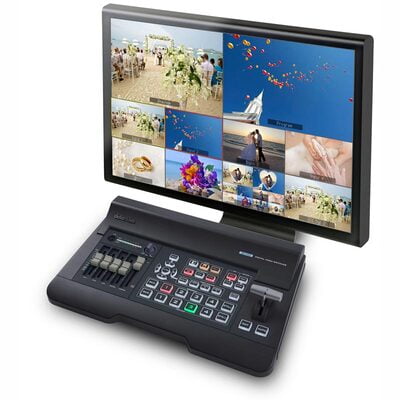

DATAVIDEO SE-650 - 4 Input HD digital video switcher
The SE-650 is Datavideo's most affordable SDI+HDMI switcher available. With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.
| Video Standard | HD |
| Video Format | 1080i 50/59.94/60Hz |
| Video Processing | SDI: 4:2:2 |
| Input Routable / Crosspoint | All 4, repeatable |
| Video Input | 2x HD-SDI |
| Computer Graphic Interface | 2 via HDMI |
| Video Output | 2 x HDMI (1 is MV, 1 is Assignable) |
| Built-in Multi-view Monitoring Out | HDMI & SDI assignable |
| Analogue Audio Input | 1 x Stereo RCA (L/R) |
| Analogue Audio Output | 1 x Stereo RCA (L/R) |
| Digital Embedded Audio Support | Input 2 channels, Output 2 channels |
| A+V Switching | Yes |
| Chromakey | 2 |
| USK | 2x Keyer support Chromakey/ Linear/ Luma Key |
| DSK | 1x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 1 |
| Logo Insertion | 1 |
| Still Store | 500 |
| Effects | FTB, Cut, 32 Wipe with border |
| Transition Preview | Full transitions preview |
| Sync / Reference In/Out | Built-in Genlock (internal) |
| Tally Output | 1x D-sub 15pin, dual color |
| PC Remote Control | DVIP (Ethernet) |
| Built-in Audio Mixer | Yes, 4 channels |
| Special Features | Free Virtual Set and Stinger transition included |
| Chassis | Unibody |
| Dimension (LxWxH) | 400 x 250 x 82 mm |
| Weight | 1.9 kg |
| Power | DC 12V, 29W |
| Operating Temp. Range | 0~40 °C |
| Options | CB-46/47/60/61/62 |
| What's in the Box | 1 x SE-650 product |
