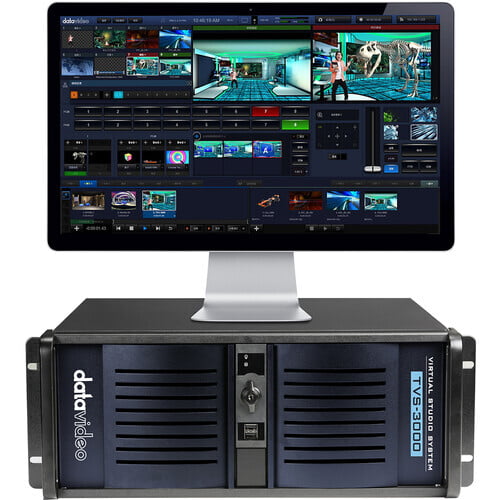

Datavideo TVS-3000 3D Tracking VR/AR 4K Virtual Studio System

Available M/E Layers

3 M/E

Effect Types

1 x Graphic
8 x Chroma Key

Downstream Keys

3 x Chroma

Switching Type

Software

Processing Resolution

UHD 4K at 60

Number of Video Input Sources

2

Video Input Connectors

3 x BNC (12G-SDI / 3G-SDI / 6G-SDI) Female

Input Video Format

SDI
UHD 4K: 25/30/50/60 fps
1080p: 25/30 fps
1080i: 50/60 fps
720p: 25/30/50/60 fps

Audio Input Connectors

1 x 1/8" / 3.5 mm TRS Analog Female

Input Audio Format

Analog

Embedded Audio Input

SDI: 2-Channel (per Input)

Video Output Channels

5

Video Output Connectors

4 x BNC (3G-SDI) Female
1 x HDMI (HDMI 2.0) Female (Preview)

Output Video Format

SDI
UHD 4K: 25/30/50/60 fps
1080p: 25/30 fps
1080i: 50/60 fps
720p: 25/30/50/60 fps
HDMI
UHD 4K: 25/30/50/60 fps
1080i: 25/30/50/60 fps
720p: 25/30/50/60 fps

Embedded Audio Output

SDI: 2-Channel (per Output)

Multiview Output

Yes

Monitor Output

2 x DisplayPort

Other I/O

1 x RJ45 LAN Input/Output
2 x USB Type-A Control Input (Shared USB 2.0 Keyboard/Mouse)
2 x USB Type-A Input (Shared USB 3.0 Adapter/Extensions)

HDCP Support

None

IP Video

H.264/MPEG-2:
1280 x 720 to 1920 x 1080 at 60p Encoding

Transport Protocols

RTMP, RTMPS, RTP, RTSP, UDP, HTTP

Simultaneous Streams

2 Streams

Recording Media

1 x 2.5" SSD(External Drives)

Internal Storage

4000 GB

Wi-Fi

Yes

Power Connector

1 x NEMA 5-15R Input

Power Consumption

Power Supply: 100 to 240 VAC (750 W)

Operating Temperature

32 to 104°F / 0 to 40°C

Certifications

CCC, CE, FCC, as per Manufacturer

Dimensions

18.9 x 18.5 x 7" / 48 x 47 x 17.8 cm

Weight

30 lb / 13.6 kg
