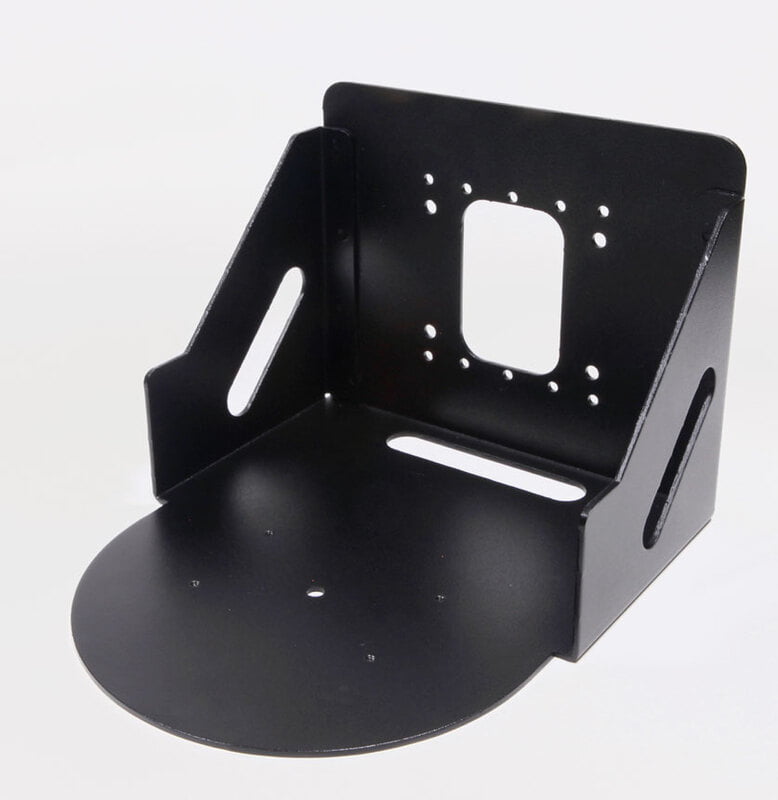

DATAVIDEO RKM-150 Black - Professional wall mount for PTC-150 and PTC-150T pan-tilt-zoom video cameras
Non-returnable
$213.98
Product Details
SPECIFICATION
Model Number
PTC-150T
Video format/Resolution
1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)
Image Sensor
1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)
2.14 Mega pixels
S/N Ratio
50dB
Min. Illumination
Color : 0.4 lx
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter
1/25~1/1250 sec (50/25Hz)
1/30~1/1500 sec (59.94/29.97Hz)
1/30~1/1500 sec (59.94/29.97Hz)
Zoom Ratio
30x Optical Zoom
Gamma Control
Off / Normal / Standard Mode 1-4
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English
White Balance
AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
AGC / Gain Control
Auto / Manual
Max. Gain Limit
Max. Gain Limit
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 270° , Tilt: +90° to -20°
Panning / Tilting Speed
Manual: 1~150°/Sec
Swing: 1~150°/Sec
Swing: 1~150°/Sec
Preset
50 Position
Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7
F1.6 to F4.7
Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation
Day & Night function
Video Output
HDMI (V1.3) x 1
3G-SDI x 1
CVBS x 1
HDBaseT x 1 to PTC-150T Receiver Box
3G-SDI x 1
CVBS x 1
HDBaseT x 1 to PTC-150T Receiver Box
Audio Input
----
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA, DVIP
Remote Control Interface
IR
RS-422
DVIP
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
RS-422
DVIP
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format
----
Audio Compression Format
----
Audio Bitrate
----
HD IP Interface
----
Streaming Protocols
----
First Stream Supported Resolution
----
Second Stream Supported Resolution
----
Video Bitrate
----
Video Bitrate Mode
----
Encoding Frame rate
----
POE
----
F/W Update
USB
IR Control
Yes
Camera Control Unit
HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173(W) x 189(H) x 219(D)
Weight
2.7 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 29W
What's in the Box
1 x PTC-150T/TW Unit
1 x HBT-11 Receiver Box
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x DC 48V Power Adaptor
2 x Power Cord
1 x A tightrope
1 x Phoenix connector to RJ-45
1 x HBT-11 Receiver Box
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x DC 48V Power Adaptor
2 x Power Cord
1 x A tightrope
1 x Phoenix connector to RJ-45
