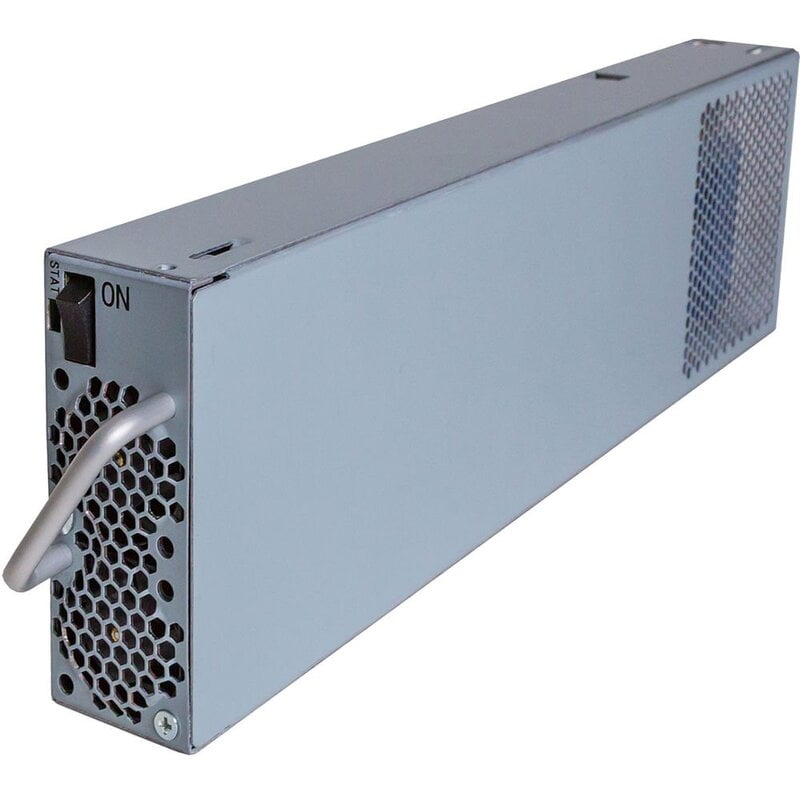

Aja Additional Power Supply for OG-X-FR openGear Frame

Frame Controller and Fans

Total Power: 50W maximum

Max. Power: +12V Rail 4A, 48W

Max. Power: -7.5V Rail 0.2A (1.5W)

GFC-8322

Total Power: 3.9W maximum

Max. Power: +12V Rail 0.2A (2.4W)

Max. Power: -7.5V Rail 0.2A (1.5W)

Reference Inputs

Number of Inputs: 2 looping

Level: 1Vpp nominal

Signal: Analog video sync (Blackburst or tri-level), or AES/EBU DARS

Impedance: 75 ohms terminating

Return Loss: >30 dB to 30 MHz

Maximum DC on REF Input: ±1V

Card Slots

20 Slots

Total Power Available: 500W

Maximum Card Power:

High Density (Split) Rear Module: 15W per card, accommodates two openGear cards and requires two slots in the frame chassis

Standard Rear Module Accommodates one openGear card and requires two slots in the frame chassis: 30W per card, or 45W if the openGear card has integrated cooling.

Double Wide Rear Module: 60W per card, or 75W for a single card with integrated cooling, or 90W for a multi-slot assembly with integrated cooling and receiving power from two or more midplane connectors.

Size (w x d x h)

2RU 19.0" x 16.82" x 3.5" (483 x 427 x 90 mm)

Power

Total   Sum of both outputs not to exceed 500W

Input: 6.3A (650W)

Output 1: 12V 41.6A, 500W maximum

Output 2: -7.5V 5A, 37.5W maximum

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Operating Relative Humidity: <90% noncondensing
