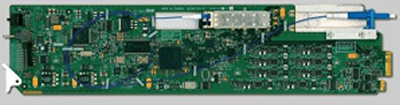

Ross Video DMX-6259-A HD-SDI 8 AES DMX, Fiber RX
Non-returnable
$2,814.12
Tags:
AES / EBU Audio De-Embedder with Fiber Optic Input
The ideal solution for de-embedding 8 AES streams from an 3G / HD / SD SDI signal with optical input.
The DMX-6259-A is a high quality program audio de-embedder capable of de-embedding up to 8 AES / EBU pairs (16 audio channels) from an 3G / HD / SD SDI signal.
The fiber input is ideal for signal paths exceeding 100m. A single card solution meeting the needs for all audio de-embedding applications. Standard and high sensitivity optical receivers are available to accommodate various link budgets and transmission distances.
The ideal solution for de-embedding 8 AES streams from an 3G / HD / SD SDI signal with optical input.
The DMX-6259-A is a high quality program audio de-embedder capable of de-embedding up to 8 AES / EBU pairs (16 audio channels) from an 3G / HD / SD SDI signal.
The fiber input is ideal for signal paths exceeding 100m. A single card solution meeting the needs for all audio de-embedding applications. Standard and high sensitivity optical receivers are available to accommodate various link budgets and transmission distances.
Key Features
- 16 channel audio de-embedding for all popular HD / SD SDI formats with fiber input
- Audio proc amp controls; gain, invert, and delay
- Assign any embedded channel to any discrete audio output
- Ability to re-map channels in embedded video stream
- Programmable silence detection and timeout thresholds
- Optical input range 1270nm to 1610nm
- Optical input sensitivity -19dBm
- Optical input sensitivity -9dBm to -28dBm, w/ high sensitivity receiver (-H)
- Optical input connection: LC
- 5-year transferable warranty
- Power: 9.5 watts
