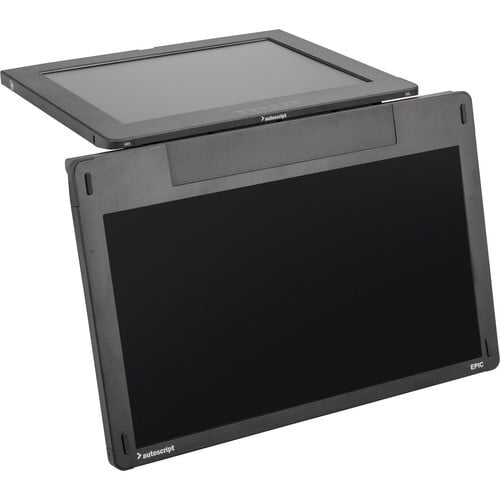

Autoscript EPIC-IP 19" prompt monitor and integrated 24" talent monitor only
The Autoscript Epic-IP 19" Prompt Monitor and Integrated 24" Talent Monitor is a combination of a 19" prompting monitor that interfaces directly with WinPlus-IP software using its LAN connector, and a 24" talent confidence monitor.
Specifications
Prompt monitor size
19" (48.26cm)
Integrated talent monitor size
24" (60.96cm)
Prompt monitor aspect ratio
4:3
Prompt monitor brightness
1500 nits
Prompt monitor resolution
1280 x 1024 SXGA
Prompt monitor contrast ratio
1000:1
Talent monitor aspect ratio
16:9
Talent monitor brightness
300 nits
Talent monitor resolution
1920 x 1080
Script and feedback inputs
LAN, 2x HD-SDI, 2x CVBS
Tally input
Opto sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
71W
Power input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC out
Viewing Angle (H/V)
170 Degrees/160 Degrees
Dimensions
Prompt monitor: 18.4 x 15.7 x 1.6" (46.74 x 39.88 x 4.06cm)
Weight
Integrated monitor: 8.6kg (18.96 lbs
