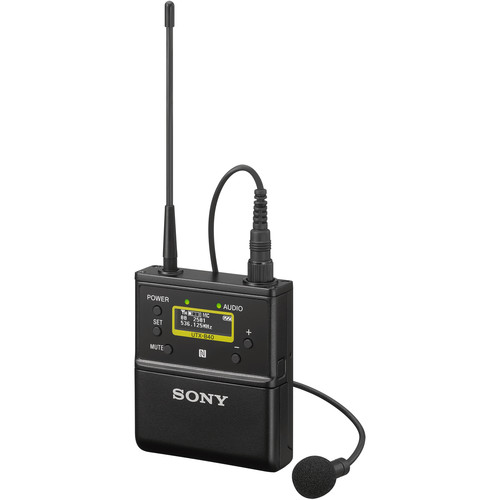

Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone System (UC25: 536 to 608 MHz)
System
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 2772 |
Included Transmitters | 1 x Bodypack |
Diversity | True Diversity |
RF Frequency Band | 536 to 608 MHz |
RF Bandwidth | 72 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 330' / 100.6 m (Typical) |
Max Transmitters per Band | 16 |
Latency | 0.35 ms |
Modulation | FM |
Pilot Tone | 32 / 32.382 / 32.768 kHz |
Receiver
Receiver Type | Camera-Mount |
Mounting Options | Shoe-Mount (with Included Hardware) |
Antenna | 2 x 1/4 Wave External, Fixed (Top-Mount) |
Number of Audio Channels | 1 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) |
Gain Range | -12 to +12 dB (3 dB Steps) |
Audio Output Level | -60 dBV |
Frequency Response | 23 Hz to 18 kHz |
USB/Lightning Connectivity | 1 x USB Type-C (Bus Power) |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 6 Hours (Alkaline) |
Display & Indicators | 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level) |
Housing | Metal |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Dimensions | 2.7 x 3.2 x 0.9" / 68 x 82 x 23.8 mm (without Antennas) |
Weight | 6.2 oz / 175.8 g (with Batteries) |
Transmitter
Transmitter Type | Bodypack |
RF Output Power | 5 / 30 mW |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Muting | Mute Switch |
Audio Input Level | +60 dBV (Mic Level) |
Gain Range | 0 to 21 dB (3 dB Steps) |
Frequency Response | 23 Hz to 18 kHz |
Sync Method | NFC |
Antenna | 1 x 1/4 Wave External, Fixed |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
Housing | Metal |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Dimensions | 2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas) |
Weight | 5.3 oz / 149 g (without Batteries) |
Microphone
Microphone Type | Lavalier |
Sound Field | Mono |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Frequency Range | 40 Hz to 20 kHz |
Sensitivity | -43 dB at 1 kHz |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Cable Length | 3.9' / 1.19 m |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Length | 0.77" / 19.5 mm |
Diameter | 0.27" / 6.8 mm |
Weight | 0.57 oz / 16.2 g |
Packaging Info
Package Weight | 0.77 |
Box Dimensions (LxWxH) | 12.1 x 10.8 x 2.8" |
