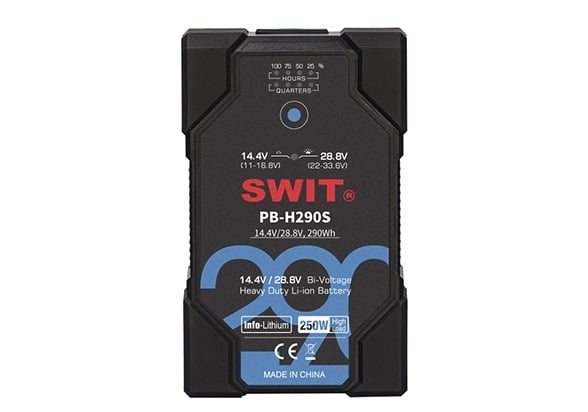

SWIT 290Wh V-mount Bi-Voltage Batteries
$928.00
Tags:
SWIT 290Wh V-mount Bi-Voltage Batteries The Bi-voltage battery PB-H290S output normal 11-16.8V voltage as default, you can attach to any normal V-mount cameras or other devices, and any normal voltage chargers. Use the ARRI ALEXA dedi- cated V-mount plate KA-A20S, PB-H290S battery can recognize and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.
Product Details
SPECIFICATION
Nominal Voltage | 14.4V or 28.8V auto switching |
Capacity | 290Wh |
Max output power (14.4V) | Total: 250W |
Pins: 250W / 20A | |
| D-tap: 120W / 10A | |
Max output power (28.8V) | Total: 250W |
| Pins: 250W / 10A | |
D-tap (16V): 50W / 3A | |
Max charging current | 16.8V / 10A |
Mount Type | V-mount |
Charging Temperature | 0 ~ 40°C |
| Discharging Temperature | -20°C ~ 50°C（Capacity and Max Load may decrease when operating below 0°） |
Dimension | 162×101×69mm |
Net weight | 1578g |
