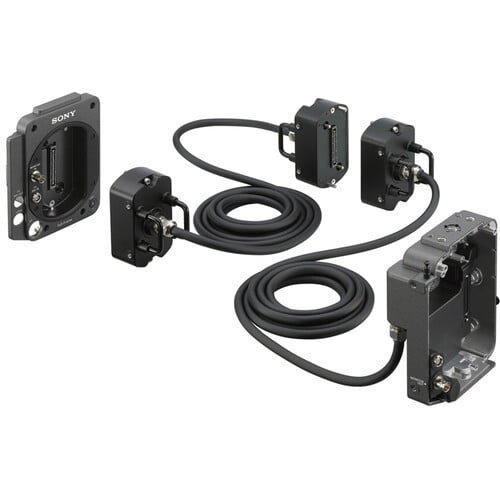

Sony Rialto Camera Extension System for Sony VENICE

Mounting Threads

Image Sensor Block Case
11 x 1/4"-20
7 x 3/8"-16

Cable Interface
4 x 1/4"-20

I/O Connections

Input
24 VDC: 1 x Fischer 3-Pin
Monitor: 1 x BNC

Output
24 VDC: 1 x Fischer 3-Pin
Monitor: 1 x BNC

Power Consumption

Approx. 2.4 W (with 9' / 2.7 m Extension)
Approx. 3.9 W (with 18' / 5.5 m Extension)

Temperature

Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C

Dimensions

Front Panel Cover: 5.24 x 6.20 x 1.99" / 13.31 x 15.75 x 5.05 cm
Image Sensor Block Case: 5.28 x 6.24 x 2.67" / 13.41 x 15.85 x 6.78 cm
Cable Interface: 2.52 x 4.13 x 1.55" / 6.40 x 10.50 x 3.93 cm (to Camera Body)
Cable Interface: 2.52 x 4.13 x 1.86" / 6.40 x 10.50 x 4.73 cm (to Sensor Block Case)
Cable Length: 9' / 2.74 m (1 Section)
Cable Length: 18' / 5.49 m ( 2 Sections)

Weight

CBK-3610XS: 6.39 lb / 2.9 kg
Imager Block: 4.19 lb / 1.9 kg (with PL Mount)
Imager Block: 3.09 lb / 1.4 kg (with E-Mount)

Package Weight

9.85 lb

Box Dimensions (LxWxH)

16 x 15 x 12"
