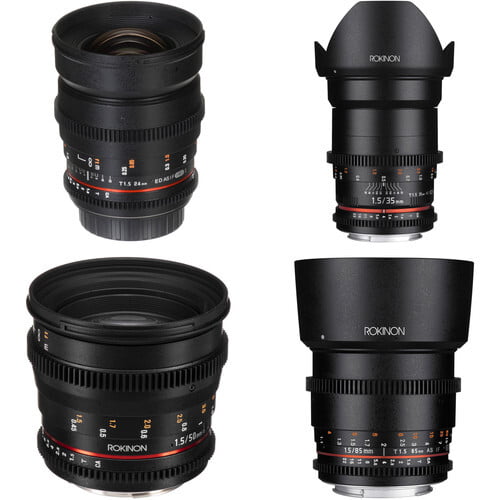

Rokinon 24, 35, 50, 85mm EF Mount KIT
$2,366.00
Tags:
Rokinon's 24mm, 35mm, 50mm, and 85mm T1.5 Cine DS Lenses for Canon EF Mount that feature sharp optics and similar physical characteristics for fast lens changes. The lenses share a T-stop range of 1.5 to 22.
Product Details
Specification
Rokinon 24mm T1.5 Cine DS Lens For Canon EF Mount
| Focal Length | 24mm |
| Lens Mount | Canon EF |
| Format | Full Frame |
| Maximum T-Stop | T1.5 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Super35: 61.8° Full Frame: 84.1° |
| Minimum Focus Distance | From : 9.8" / 25 cm |
| Optical Design | 13 Elements in 12 Groups |
| Iris Blades | 8 |
| Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm |
| Length | 3.84" / 97.5 mm |
| Weight | 21.7 oz / 615 g |
Packaging Info
| Package Weight | 1.75 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.2 x 5.2" |
Rokinon 35mm T1.5 Cine DS Lens For Canon EF Mount Specs
Focal Length 35mm Lens Mount Canon EF Format Full Frame Maximum T-Stop T1.5 Minimum T-Stop T22 Diagonal Angle of View Super35: 40.8°
Full Frame: 63.1° Minimum Focus Distance From : 12" / 31 cm Optical Design 12 Elements in 10 Groups Iris Blades 8 Length 4.38" / 111.5 mm Weight 24.7 oz / 700 g
Packaging InfoPackage Weight 2 lb Box Dimensions (LxWxH) 7.6 x 5.2 x 5.1"
| Focal Length | 35mm |
| Lens Mount | Canon EF |
| Format | Full Frame |
| Maximum T-Stop | T1.5 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Super35: 40.8° Full Frame: 63.1° |
| Minimum Focus Distance | From : 12" / 31 cm |
| Optical Design | 12 Elements in 10 Groups |
| Iris Blades | 8 |
| Length | 4.38" / 111.5 mm |
| Weight | 24.7 oz / 700 g |
Packaging Info
| Package Weight | 2 lb |
| Box Dimensions (LxWxH) | 7.6 x 5.2 x 5.1" |
Rokinon 50mm T1.5 AS UMC Cine DS Lens For Canon EF Mount Specs
Center ColumnFocal Length 50mm Lens Mount Canon EF Format Full Frame Maximum T-Stop T1.5 Minimum T-Stop T22 Diagonal Angle of View Full Frame: 46.2° Minimum Focus Distance From : 1.5' / 0.45 m Optical Design 9 Elements in 6 Groups Iris Blades 8 Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch Filter Thread 77 mm Dimensions (W x H) 3.2 x 3.2" / 81.3 x 81.3 mm Length 2.9" / 74.7 mm Weight 20.3 oz / 575 g
Packaging InfoPackage Weight 1.65 lb Box Dimensions (LxWxH) 6.2 x 5.2 x 5.1"
Center Column
| Focal Length | 50mm |
| Lens Mount | Canon EF |
| Format | Full Frame |
| Maximum T-Stop | T1.5 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Full Frame: 46.2° |
| Minimum Focus Distance | From : 1.5' / 0.45 m |
| Optical Design | 9 Elements in 6 Groups |
| Iris Blades | 8 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
| Filter Thread | 77 mm |
| Dimensions (W x H) | 3.2 x 3.2" / 81.3 x 81.3 mm |
| Length | 2.9" / 74.7 mm |
| Weight | 20.3 oz / 575 g |
Packaging Info
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 6.2 x 5.2 x 5.1" |
Rokinon 85mm T1.5 Cine DS Lens For Canon EF Mount Specs
| Focal Length | 85mm |
| Lens Mount | Canon EF |
| Format | Full Frame |
| Maximum T-Stop | T1.5 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Super35: 17.7° Full Frame: 28.3° |
| Minimum Focus Distance | From : 42" / 106.7 cm |
| Optical Design | 9 Elements in 7 Groups |
| Iris Blades | 8 |
| Length | 2.94" / 74.7 mm |
| Weight | 20.5 oz / 580 g |
Packaging Info
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 6.3 x 5.2 x 5.2" |
