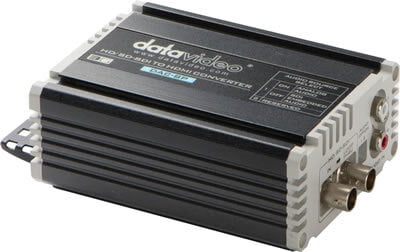

DATAVIDEO DAC-8P -SDI to HDMI Converter
Non-returnable
$321.51
Tags:
The DAC-8P allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to embed audio from a stereo RCA connection, or you can keep the embedded audio from the SDI source.
Product Details
Specifications Conversion
3G/ HD/SD-SDI to HDMI
Video Inputs
1x 3G/HD/SD-SDI
Loop Through
1
Video Outputs
1x HDMI
with embedded Audio
Audio Inputs
2 x RCA (Stereo Pair)
2x SDI Audio embedded
Audio Outputs
2x HDMI Audio embedded
Supported Video Input Formats
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)
Output Resolutions
Automatically matches the SD, HD and
3G SDI video input
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.3 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 4W
What's in the Box
1 x DAC-8P
1 x AD Switch DC 12V
1 x Thank You Card
Conversion
3G/ HD/SD-SDI to HDMI
Video Inputs
1x 3G/HD/SD-SDI
Loop Through
1
Video Outputs
1x HDMI
with embedded Audio
Audio Inputs
2 x RCA (Stereo Pair)
2x SDI Audio embedded
Audio Outputs
2x HDMI Audio embedded
Supported Video Input Formats
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)
Output Resolutions
Automatically matches the SD, HD and
3G SDI video input
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.3 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 4W
What's in the Box
1 x DAC-8P
1 x AD Switch DC 12V
1 x Thank You Card
