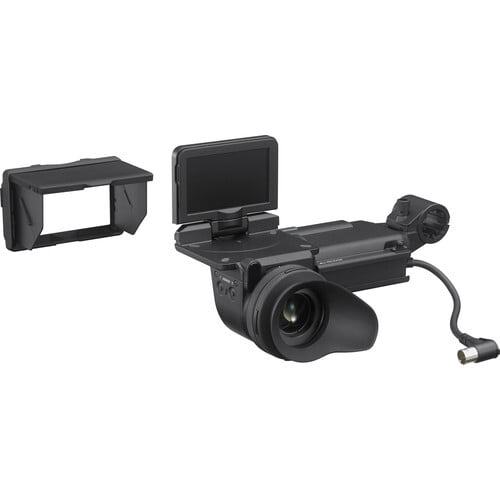

Sony HDVF-EL30 0.7" FHD OLED Viewfinder with 3.5" Display for Sony 4K/HD Cameras

Display Size

0.7" (1.8 cm)

Display Area (HxV)

0.6 x 0.4" (1.5 x 1.0 cm)
16:9 Aspect ratio

Diopter Range

For Loupe: -4.0 to +2.0 m^-1

Brightness

200 cd/m² (Typical)

Effective Pixels

1920 (H) x 1080 (V) x 3 (RGB)

Color Temperature

D65

Display Size & Type

3.5" (8.9 cm) TFT transmissive LCD panel

Display Area (H × V)

3.1 x 1.5" (7.7 x 4.3 cm)
16:9 Aspect ratio

Brightness

300 cd/m² (Typical)

Effective Pixels

960 (H) × 540 (V) x 3 (RGB)

Color Temperature

D65

Digital Scanning Frequency (H / V)

1080 Scanning Lines:
23.98PsF: 26.97 kHz / 47.95 Hz
24PsF: 27.00 kHz / 48 Hz
25PsF: 28.13 kHz / 50 Hz
29.97PsF: 33.72 kHz / 59.94 Hz
50i: 28.13 kHz / 50 Hz
59.94i: 33.72 kHz / 59.94 Hz

720 Scanning Lines:
50P: 36.00 kHz / 50 Hz
59.94P: 44.96 kHz / 59.94 Hz

Input Signals

Y: 1.0 Vpp, Synchronous, 75 Ohm terminated
Pb, Pr: 0.7 Vpp, Asynchronous, 75 Ohm terminated

Camera Connector

Round type 20-pin

Power Supply

10.5 to 17.0 VDC (Supplied by the camera)

Power Consumption

7.3 W

Temperature

Storage: -4 to 140°F (-20 to 60°C)
Operating: -4 to 113°F (-20 to 45°C)

Folded Dimensions

8.8 x 8.4 x 6.3" (22.1 x 21.2 x 15.8 cm)

Weight

2 lb (0.9 kg)

Package Weight

3.5 lb

Box Dimensions (LxWxH)

12.7 x 10.6 x 6.3"
