AutocueQTV 22" Talent Feedback Monitor KIT

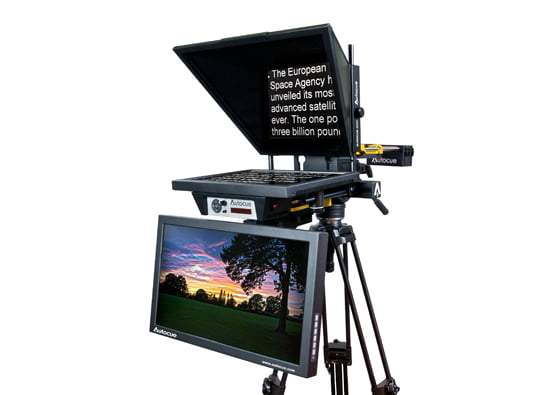

The Autocue/QTV 22" Talent Feedback Monitor is a widescreen SDI monitor for Autocue's Master Series teleprompters. A new mounting system enables conveniently attaching the monitor right below the teleprompter to let on-camera talent see their presentations live.
specification
Size | 21.5" wide display (54.6 cm) |
Supported Resolutions | 1920 x 1080 @ 60 Hz (native resolution) |
Pixel Pitch | 0.248 x 0.248 mm |
Viewing Angle | 170°/160° H/V |
Brightness | 250 nit typ. |
Contrast Ratio | 3000:1 typ. |
Response Time | 25 ms typ. |
Dot Frequency | 173 MHz (max) |
Connections | Inputs: |
VESA Compatibility | 100 mm VESA spacing |
Power Supply | 12 VDC |
Power Consumption | 40 W max |
Power Saving | EPA, VESA compliant |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 149°F (-20 to 65°C) |
Relative Humidity | 5 to 90%, non condensing |
MTBF | > 50,000 hours (excluding backlight) |
Dimensions | Without mount: 20.1 x 12.3 x 2.3" (51.2 x 31.4 x 6 cm) |
Weight | With mount: 16.5 lb (7.5 kg) |
Packaging Info
Package Weight | 21.155 lb |
Box Dimensions (LxWxH) | 23.2 x 19.5 x 16.2" |
