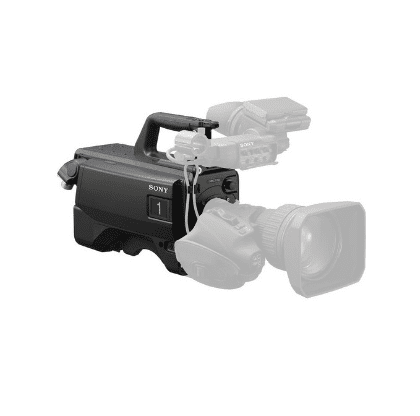

Sony HDC-3170//U - HD Portable Studio Camera Head with Digital Triax Interface
Specifications |
|
Power requirements | DC 240 V, 1.05 A (max.) |
Operating temperature | 20°C to +45°C (.4°F to 113°F) |
Storage temperature | 20°C to +60°C (.4°F to 140°F) |
Mass Approx | 5.0 kg (11 lb 0.4 oz) |
Imager | 2/3 inch type CMOS sensor with global shutter |
Method | 3-CMOS, RGB |
Sensitivity | F12 with 1080/59.94i ; F13 with 1080/50i (at 2,000 lx with 89.9% reflectance) |
Signal-to-noise ratio | -62 dB or higher |
Horizontal resolution | 1,000 TV lines (at center of screen), 5% or higher modulation |
Geometric distortion | Negligible (not including lens distortion) |
Spectrum system | F1.4 prism |
Built-in filters | 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND |
CCU | Triax connector (x1) |
LENS | 12-pin (x1) |
VF | 20-pin (x1) |
MIC 1 IN | XLR 3-pin, female (x1) |
AUDIO IN CH1, CH2 | XLR 3-pin, female (x1 each); AUDIO switch for MIC: –60 dBu (can be selected up to –20 dBu in the menu), balanced; AUDIO switch for LINE: 0 dBu, balanced |
INTERCOM 1, INTERCOM 2 | XLR 5-pin, female (x1) |
EARPHONE | 4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard) |
DC IN | XLR 4-pin (x1), DC 10.5 to 17 V |
DC OUT | 4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A (This may be limited by the imposed load or inputs); BNC (x1) ; No |
SDI MONI | BNC (x1) |
TEST OUT | BNC (x1) |
PROMPTER/GENLOCK | BNC (x1); PROMPTER 1 Vp-p, 75 Ω; GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) |
PROMPTER2 | No |
RET CTRL | 6-pin (x1) |
REMOTE | 8-pin (x1) |
TRACKER | 12-pin (x1) |
CRANE | No |
USB | USB 2.0 Type A 4-pin (x1) (for connecting USB drive) |
NETWORK TRUNK | No |
