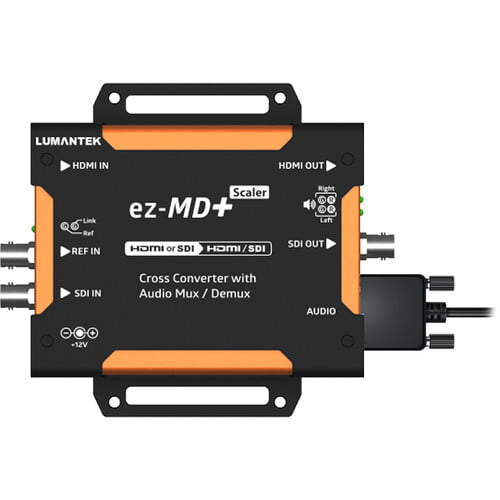

Lumantek EZ-MD+ HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler
The compact HDMI/SDI Cross Converter from Lumantek converts HDMI to SDI signals or SDI to HDMI signals. The converter can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60 and lets you choose between a 16:9 or 4:3 video displaying ratio. A 9-pin serial port allows embedding and de-embedding of audio with the included external 9-pin to XLR breakout cable. A 10-step rotary switch controls the audio delay of the video source at 50ms steps.
SPECIFICATION
Input
Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
Input Video Format | SDI |
Output
Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
Output Video Format | SDI |
Connectivity
Other I/O | 1 x DE-9/DB-9 Input/Output |
Power
Power Connector | 1 x Barrel (11 to 13 VDC) Input |
Power Consumption | Power Supply: 100 to 240 VAC at 1 A (8 W) |
Environmental
Operating Temperature | 32 to 113°F / 0 to 45°C |
General
Dimensions | 5.12 x 3.95 x 1.06" / 130 x 100.4 x 26.9 mm |
Weight | 14.11 oz / 400 g |
Packaging Info
Package Weight | 1.595 lb |
Box Dimensions (LxWxH) | 8.1 x 6.1 x 3.5" |
