RED DIGITAL CINEMA KOMODO Expander Module
$643.05
Tags:

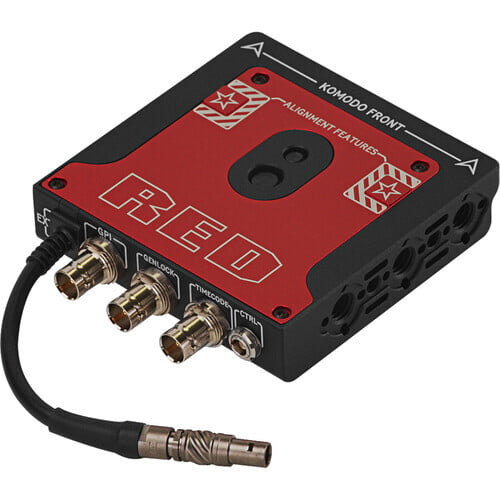

The KOMODO® Expander Module is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), GPI (BNC), Timecode in (BNC) and CTRL (4-pin).
Product Details
SPECIFICATION
| DIMENSIONS | Height: 1.25 in (32 mm) Width: 3.75 in (95 mm) Depth: 4.25 in (108 mm) |
|---|---|
| WEIGHT | Approximately 0.9 lbs (408 g) |
| MATERIALS | Aluminum |

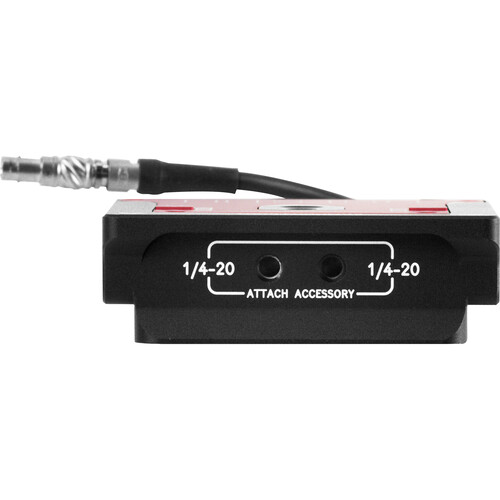

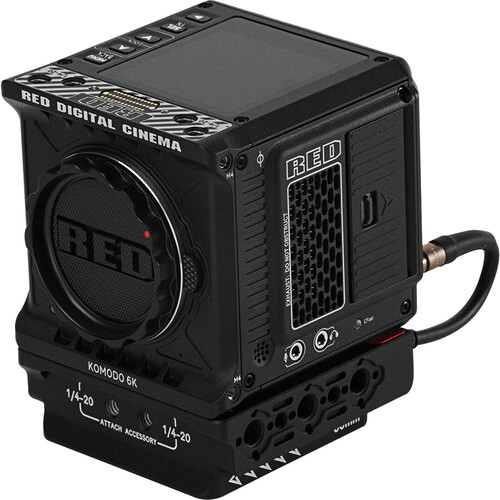

| MOUNTING TO KOMODO | 1x ¼-20 and 1x 3/8-16 captive mounting screw |
| CONNECTION TO KOMODO | 9-pin EXTENSION port |
| CONNECTORS | GPI (BNC) Genlock (BNC) Timecode In (BNC) CTRL (Tally OUT /RS-232 Rx and Tx) (4-Pin 00) |

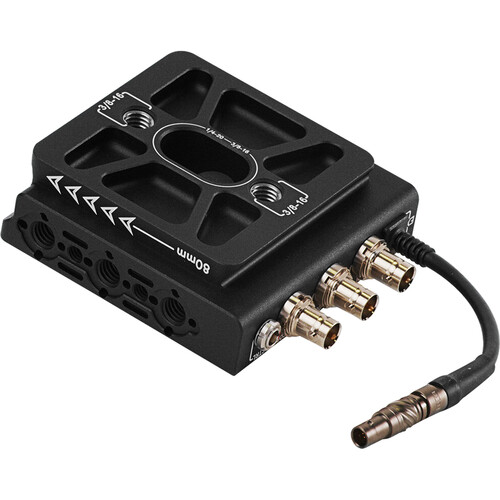

| ARM MOUNTING | 6x ¼-20 and 8x 3/8-16 mounting holes with |
| INTEGRATED QUICK RELEASE PLATE | Compatible with the GDU 80mm Touch N Go |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
