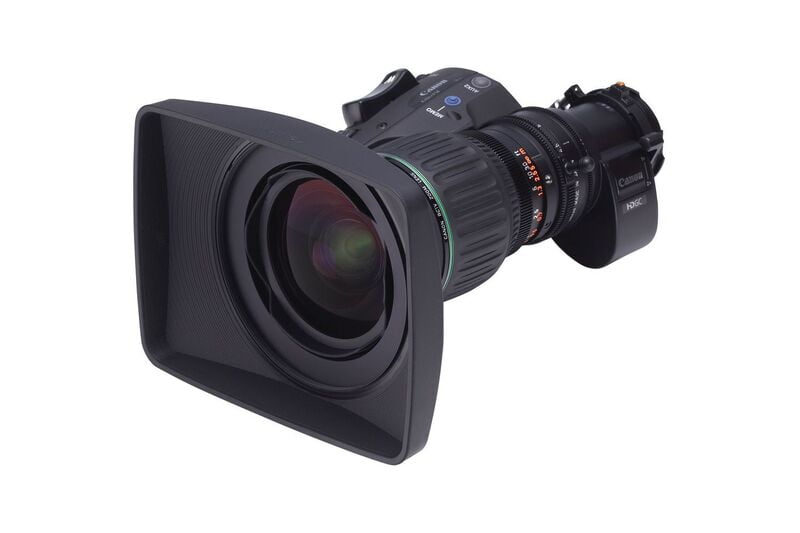

Canon KJ22ex7.6B IRSE
$17,239.92
Tags:
The optical performance of the KJ22ex7.6B has been improved on a number of fronts compared to its predecessor KJ21ex7.6B.
Product Details
SPECIFICATION
| Lens Model Number | KJ22ex7.6B IRSE / IASE | |
| Image Size | 2/3” | |
| Zoom Ratio | 22x | |
| Built-in Extender | 2.0x | |
| Range of Focal Length (with Extender) | 7.6 ~ 168mm 15.2 ~ 336mm | |
| Maximum Relative Aperture (with Extender) | 1:1.8 at 7.6 - 116.3mm 1:2.6 at 168mm 1:3.6 at 15.2 - 232.6mm (2.0x) 1:5.1 at 336mm (2.0x) | |
| Angular field of view (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 60.1° x 46.9° at 7.6mm 3.0° x 2.3° at 168mm 32.3° x 24.5° at 15.2mm (2.0x) 1.5 ° x 1.1° at 336mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 64.6° x 39.1° at 7.6mm 3.3° x 1.8° at 168mm 35.1° x 20.1° at 15.2mm (2.0x) 1.6° x 0.9° at 336mm (2.0x) | |
| Minimum Object Distance (M.O.D.) from lens front | 0.8m (10mm with Macro) | |
| Object Dimensions at M.O.D. (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 87.4 x 65.6cm at 7.6mm 4.0 x 3.0cm at 168mm 43.7 x 32.8cm at 15.2mm (2.0x) 2.0 x 1.5cm at 336mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 95.0 x 53.4cm at 7.6mm 4.4 x 2.5cm at 168mm 47.5 x 26.7cm at 15.2mm (2.0x) 2.2 x 1.3cm at 336mm (2.0x) | |
| Size (W x H x L) | 164.7 x 112.1 x 218.6mm | |
| Weight | IRSE 1.82kg (4.0lbs) IASE 1.90kg (4.19lbs) |
