FUJINON LA30x7.8BRM-XB2 Broadcast Zoon Lens
Sensor format: 2/3 inch broadcast cameras
Focal length: 7.8 to 234 mm (30× zoom)
Maximum aperture: f/1.9 (wide) to f/3.9 (tele)
Drive system: Integrated servo with 16-bit encoders for zoom, focus and iris
Zoom speed: approx. 1 second to 120 seconds (wide to tele)
Minimum object distance: 0.8 m from lens front (standard mode)
Macro focus: approx. 5 cm from lens front when focus ring is slid forward
Angle of view (16:9): wide ~63.2° × 38.1°; tele ~2.3° × 1.3°
Focus and iris control: manual or servo compatible
Optical coating: HT EBC high-transmittance multi-layer coating
Filter thread: M95 × 1
Dimensions: approx. 100 mm diameter × 190 mm length
Weight: approx. 1.7 kg (without lens hood)
Included: lens hood, rear cap and manufacturer warranty

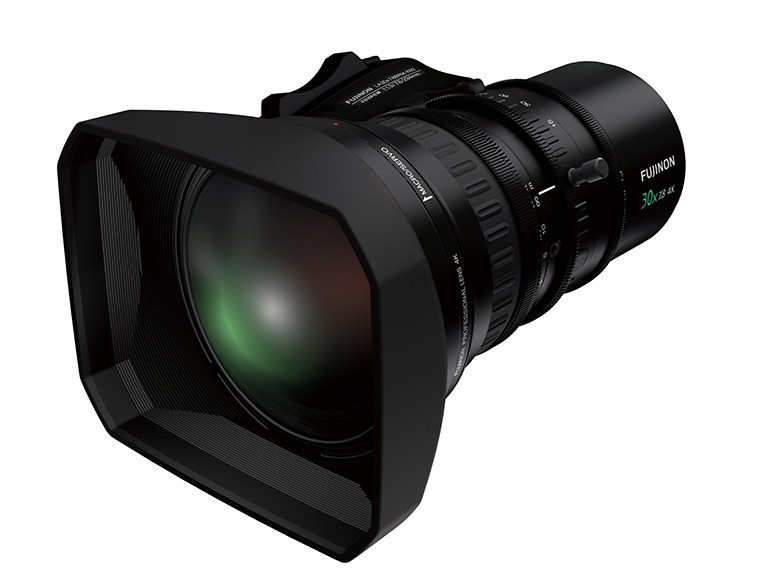

Fujinon LA30x7.8BRM-XB2 Portable 4K Broadcast Zoom Lens
The Fujinon LA30x7.8BRM-XB2 is a compact and lightweight 30x broadcast zoom lens designed for professional 4K productions including ENG, live events, remote broadcasting and virtual studio environments. Its zoom coverage of 7.8 mm to 234 mm supports a wide range of shooting positions while keeping high optical performance throughout the entire zoom range.
It features a high precision 16 bit encoder drive unit that enables accurate data output for virtual sets and remote production workflows. Smooth zoom response is available from fast 1 second moves to slow controlled transitions up to 120 seconds for creative production needs.
The lens uses rear focus mechanics to keep focus breathing minimal while achieving reliable operation under both manual and servo control. Fujifilm HT EBC multi layer optical coating improves color accuracy and overall image quality, supporting the full demands of 4K acquisition.
Weighing approximately 1.7 kg with a compact 190 mm length, it is optimized for shoulder mounted capture where mobility and long lens performance are essential. The focus ring includes a macro function that allows extremely close focus for detailed shots near the front of the lens.
This lens is well suited for news, sports, concerts, documentary work and field production environments where reliability, optical consistency and remote control capability are required.
Recommended Applications
This lens is suitable for a wide range of professional workflows including live news broadcasting, sports coverage, remote production, virtual set environments, documentary filming and field event production. Its design supports shoulder operation, long reach coverage and integration into advanced control systems.
