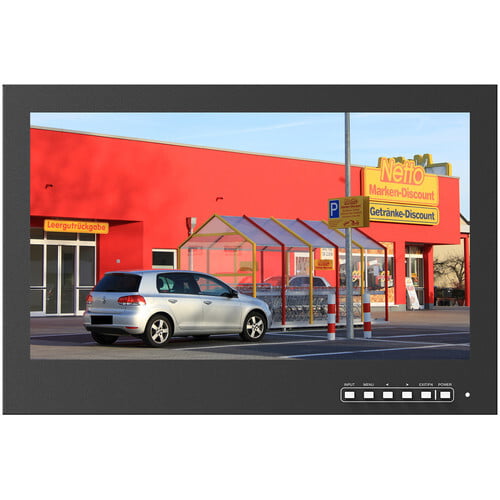

Lilliput PVM150S 15.6" Rack-Mountable 1920 x 1080 LCD Surveillance Monitor
Monitor the feed from your surveillance cameras with the PVM150S 15.6" Rack-Mountable LCD Surveillance Monitor from Lilliput. This unit displays video at a maximum resolution of 1920 x 1080. It features 178° horizontal and vertical viewing angles and a 16:9 aspect ratio. The monitor is equipped with built-in speakers, an HDMI input, a VGA input, a 3G-SDI input & loop output, an AV input, and a headphone jack.
Brightness of 1000 cd/m²
HDMI 1.4b input supports 4K signals at 30 Hz
HDR support (HDR 10 and HLG)
Metal housing for durability
Specification
Display
Screen Size (Diagonal) | 15.6" |
Resolution | 1920 x 1080 |
Panel Type | IPS-Type LCD |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
HDR Compatibility | HDR10, Hybrid Log Gamma |
Brightness | 1000 cd/m² |
Viewing Angle (H x V) | 178 x 178° |
Aspect Ratio | 16:9 |
Contrast Ratio | 1000:1 |
Connectivity
Primary Connectivity Location | Display |
Input Ports | 1 x HDMI 1.4 Video |
Output Ports | 1 x SDI – Video |
USB Ports | 1 x USB 2.0 |
Ethernet Ports | None |
Audio
Built-In Speakers | Yes |
Speaker Configuration | 2-Channel |
Electrical
Power Consumption | Typical: 24.0 W |
DC Input Power | 10 to 24 VDC at 2 A |
Power Adapter Type | External |
Environmental
Operating Temperature | -4 to 140°F / -20 to 60°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Physical
Material of Construction | Metal |
Dimensions | 6.2 x 9.9 x 1.0" / 157.0 x 252.0 x 25.0 mm |
Weight | 6.33 lb / 2.87 kg |
Packaging Info
Package Weight | 9.965 lb |
Box Dimensions (LxWxH) | 19.1 x 16 x 4" |
