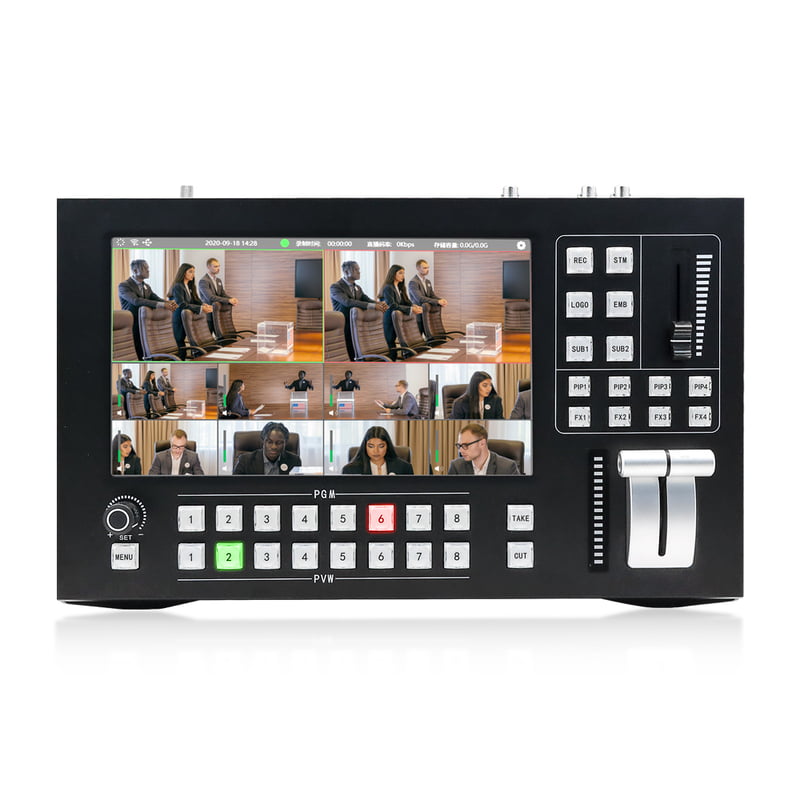

Katovision KT-KD31 LIVE VIDEO SWITCHER
$2,499.00
Tags:
8 channels, SDI/HDMI/IP, RTMP live streaming Video input: 4 channels 3G-SDI+2 channels HDMI+2 channel IP video streaming Video output: 2 channels 3G-SDI+1channales HDMI+2channels IP video streaming Video standard: FHD
Product Details
SPECIFICATION
| Video standard | FHD |
| Video processing capabilities | Input： Max 1920x1080p60 Output： Max 1920x1080p60 |
| Video input | 4 channels 3G-SDI+2 channels HDMI+2 channel IP video streaming |
| Video output | 2 channels 3G-SDI+1channalesHDMI+2channels IP video streaming |
| Live video encoding format | H.264、H.265 |
| Live video bitrate | 500~10240Kbps |
| Live video bitrate mode | CBR |
| Network input protocol | RTSP、RTMP |
| Network output protocol | RTSP、RTMP |
| Audio input | RCA head*1 TRS3.5mm*1 Video embedded |
| Audio output | RCA *1 TRS 3.5mm*1 Video embedded |
| Transition control | T-Bar、button |
| Subtitle overlay | support |
| Logo overlay | support |
| USB port | USB3.0*2+USB2.0*2 |
| Power supply | |
| Input voltage | DC 12V |
| Input Current | 3A |
| Rated power | 36W |
| Others | |
| Use environment | Indoor |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -10℃~50℃ |
| Dimensions | 420*257.52*121.2mm |
