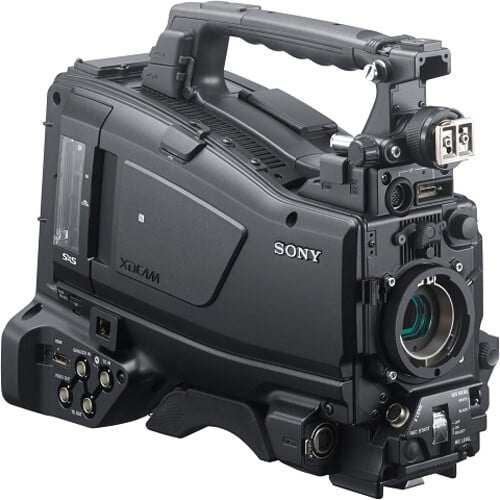

Sony PXW-X400 Shoulder Camcorder (Body Only)

Sensor Resolution

Effective: 2.07 Megapixel

Sensor Type

3-Chip 2/3"-Type CMOS Sensor

Horizontal Resolution (TV Lines)

1000 TV Lines or More

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Gain

-3 to 42 dB

Signal-to-Noise Ratio

62 dB

Minimum Illumination

0.013 Lux

Focal Length

Not Specified by Manufacturer

Max Digital Zoom

4x

Variable Frame Rates

1080p: 1 to 60 fps
720p: 1 to 60 fps

Video I/O

1 x HDMI Output
1 x BNC (Composite) Output
2 x BNC (3G-SDI) Output

Audio I/O

2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
1 x XLR 5-Pin Input/Output
1 x XLR 5-Pin Microphone Input

Power I/O

1 x Light 2-Pin Output
1 x Hirose 4-Pin (11 to 17 VDC up to 1.8 A) Output
1 x XLR 4-Pin (11 to 17 VDC) Input

Other I/O

1 x BNC (Timecode) Output
1 x RJ45 (LAN)
1 x 20-Pin Viewfinder
1 x 26-Pin Viewfinder
2 x USB Type-A
1 x USB Type-B
1 x 50-Pin
1 x Hirose 8-Pin Control
1 x Lens 12-Pin Control
1 x DE-15/DB-15 (Wireless Receiver)
1 x BNC (Genlock) Input
1 x BNC (Timecode) Input

Size

3.5"

Resolution

960 x 540

Display Type

Articulating LCD

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Power Consumption

24 W

Dimensions (W x H x D)

6 x 11 x 13" / 15 x 27 x 33 cm

Package Weight

Box Dimensions (LxWxH)

21.4 x 14.3 x 9.7"
