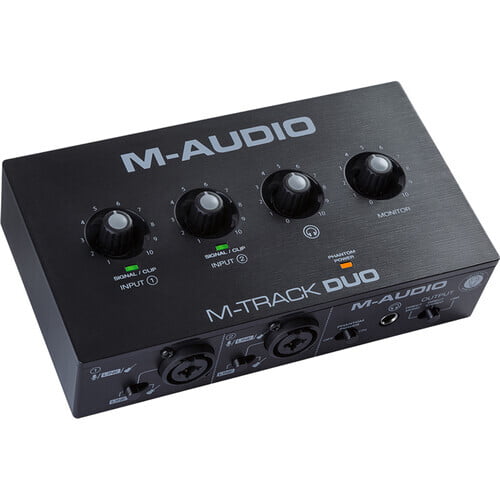

M-Audio M-Track Duo Desktop 2x2 USB Audio Interface

Form Factor

Tabletop

Display

None

Channels of I/O

Analog:
2 Inputs / 2 Outputs at 192 kHz

Maximum Sampling Rate

48 kHz / 24-Bit

Number of Microphone Preamps

2 Preamps

Input Level Adjustment

2 x Knob

Expansion Slots

None

Pad

None

Gain/Trim Range

Mic Inputs:
Up to +60 dB
Line/Hi-Z Inputs:
Up to +50 dB

High-Pass Filter

None

Solo/Mute

None

Analog Audio I/O

2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2 x 1/4" TRS Balanced Line Output
1 x 1/4" TRS Unbalanced Headphone Output (Front Panel)

Phantom Power

48 V, Selectable On/Off (Applied to All Inputs)

Digital Audio I/O

None

Host Connection / USB

1 x USB Type-B (Class-Compliant)

USB (Non-Host)

None

Sync I/O

None

Network I/O

None

MIDI I/O

None

Wireless Connectivity

None

Frequency Response

Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz +0.1 dB
Monitor Outputs:
20 Hz to 20 kHz +0.1 dB
Headphone Outputs:
20 Hz to 20 kHz +0.5 dB

Maximum Output Level

Line Outputs:
+4 dBu

Headphone Output Power

60 mW per Channel into 32 Ohms

Impedance

Hi-Z Inputs:
1 Megohm (Unbalanced)

SNR

Mic Inputs:
109 dB (A-Weighted)
Monitor Outputs:
109 dB (A-Weighted)
Headphone Outputs:
100 dB (A-Weighted)

THD

Line Inputs:
0.002% (Min Gain, at 0 dBu)
Monitor Outputs:
0.002% (at 0 dBu)

THD+N

Mic Inputs:
0.003% (A-Weighted, Min Gain, at 0 dBu)
Hi-Z Inputs:
0.005% (A-Weighted, Min Gain, at 0 dBu)
Headphone Outputs:
0.02% (A-Weighted)

EIN

Mic Inputs:
-128 dBu A-Weighted (Max Gain)

Sample Rates

48 kHz (AD/DA Conversion)

Sample Rate Conversion

None

Bit Depths

24-Bit (AD/DA Conversion)

Latency

Zero-Latency Direct Monitoring

Sync Sources

Internal

Memory Card Slot

None

OS Compatibility

macOS 10.8 or Later
Windows 7 or Later (32-Bit, or 64-Bit)

Included Software

Pro Tools First M-Audio Edition

Compatible Software (Not Included)

Any Core Audio (Mac) Compliant Software

Supported Drivers/API & Plug-Ins

macOS Class-Compliant (No Driver Needed)
Windows Driver Downloadable from Manufacturer

Required Hardware

Available USB Port
USB Cable (Included)

Internet Connection

Required for Registration, Software/Driver Download

Power Requirements

USB Bus Power

Dimensions

7.5 x 4.4 x 2.1" / 19.1 x 11.2 x 5.3 cm

Weight

0.8 lb / 0.4 kg

Package Weight

Box Dimensions (LxWxH)

9 x 6.1 x 3.7"
