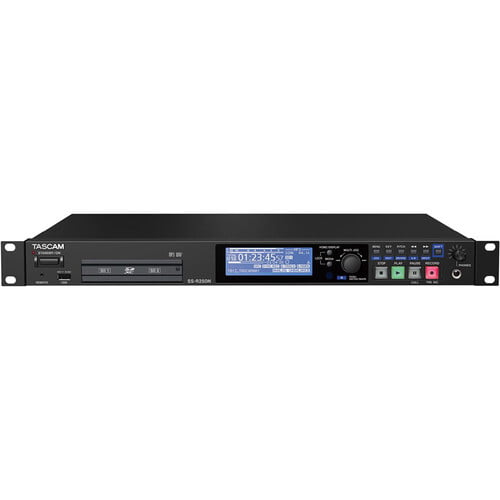

Tascam SS-R250N Memory Recorder with Networking and Optional Dante Support
The Tascam SS-R250N Memory Recorder with Networking and Optional Dante Support is a solid-state recorder that features networking and can accept an optional IF-DA2 Dante card for integrating into any commercial environment. It can be used in broadcast and contractor installation markets, and records in WAV, MP3, SD/SDHC/SDXC, or USB memory formats.
Built with parallel and RS-232C serial control, along with flash start, the media recorder provides balanced and unbalanced I/O, AES/EBU, and coaxial digital I/O. These unique features make the SS-R250N memory recorder an ideal one rack-space media solution.
Key Features:
- Balanced and unbalanced analogue I/O (XLR and RCA jacks)
- AES/EBU and S/PDIF digital I/O
- Optional IF-DA2 Dante card allows the unit to operate on a Dante audio network
- Sample rate convertor on digital inputs
- RS-232C Serial and 25-pin parallel control ports
- Records to SD Card or USB media
- Automatic file close saves file every 2 seconds to prevent data loss if power is interrupted while recording
- Pre-record records the input buffer so that the start of a recording isn't missed
- Auto cue and auto ready for instant track playback
- Power-on play begins playback as soon as the unit is switched on
- Graphic LCD display with time, level, and menu information
- Security screw to keep the SD slots covered
- VSA (Variable Speed Audition) changes playback speed without changing the pitch and vice-versa
- Compact 1U rack-mountable format
- Ethernet connection can be used for control and file transfer
- Microphone inputs with phantom power
- Supports SDXC media for cards larger than 32 GB (up to 128 GB)
- Redundant recording feature records programme to both cards simultaneously
- Relay record begins recording on the second card when the first one fills up
- Free app for iOS and Android allows the recorder to be operated from a smartphone
- FTP client and server functions allow recordings to be automatically uploaded to a server, or for a programme to be pushed to a player from a remote location
- Password protection and file encryption prevent stolen data assets
- Scheduled recording triggers recording or playback at a certain time each week, etc. Can be used together with automatic uploads for instant availability
- SNTP function allows the internal clock to be set using internet time servers
- Link playback function allows two units to be operated simultaneously for redundant backup
- Compressor and limiter on input
- Auto level control monitors and adjusts the input signal
- Power-on record function starts recording as soon as power is switched on
- Mono mix playback function
- Three user presets allow quick setting of input level, sample rate, etc.
- Auto-mark function shows where a file has clipped
- Dual-format recording simultaneously captures files as WAV and MP3 format
Specifications
Audio Performance | |
Frequency Response | 20 Hz - 20 kHz ±0.5 dB (JEITA) |
Signal to Noise Ratio | 95 dB or more (JEITA) |
Dynamic Range | 95 dB (JEITA) |
Distortion | 0.005% or less (JEITA) |
Channel Crosstalk | 95 dB (JEITA) |
Specifications | |
Supported Media | SD (512 MB to 2 GB) |
Recording Formats | WAV: Stereo/Mono, 44.1/48/96 kHz, 16/24-bit |
Playback Formats | WAV: Stereo/Mono, 44.1/48/96 kHz, 16/24-bit |
Number of Channels | 2 mono, 1 stereo |
Analogue Inputs | |
Connector | Balanced: |
Standard Input Level | +4 dBu (1.23 Vrms) |
Maximum Input Level | +20 dBu (7.75 Vrms) |
Minimum Input Level | -10 dBu (0.25 Vrms) or more |
Input Impedance | 22 kOhms |
Connector | Unbalanced: |
Standard Input Level | -10 dBV (0.316 Vrms) |
Maximum Input Level | +6 dBV (2.0 Vrms) |
Minimum Input Level | -24 dBV (0.06 Vrms) or more |
Input Impedance | 22 kOhms |
Analogue Outputs | |
Connector | Balanced: |
Standard Output Level | +4 dBu (1.23 Vrms) |
Maximum Output Level | +20 dBu (7.75 Vrms) |
Output Impedance | 100 Ohms |
Connector | Unbalanced: |
Standard Output Level | -10 dBV (0.316 Vrms) |
Maximum Output Level | +6 dBV (2.0 Vrms) |
Output Impedance | 200 Ohms |
Headphones | |
Connector | 1/4" (6.3 mm) stereo jack |
Maximum Output | 45 mW + 45 mW (into 32 Ohms load, 0.1% distortion) |
Digital Inputs | |
Connector | 3-pin XLR and RCA jacks |
Formats | IEC60958-3 (S/PDIF), AES3-2003/IEC60958-4 (AES/EBU) |
Input Frequency | 32 Hz to 96 kHz |
Digital Outputs | |
Connectors | 3-pin XLR and RCA jacks |
Formats | IEC60958-3 (S/PDIF), AES3-2003/IEC60958-4 (AES/EBU) |
Control I/O | |
RS-232C | Connector: D-sub 9-pin |
Protocol | RS-232C |
Parallel | Connector: D-sub 25-pin |
Maximum Input Voltage | +5.5 V |
Minimum Input Voltage | High Level: +3.75 V |
Maximum Input Voltage | Low Level: +1.25 V |
Output Format | Open drain (withstand voltage 50 V, maximum 50 mA) |
Maximum Output Voltage | Low Level: 0.5 V |
Power | +5 V Power Maximum Current: 100 mA |
Remote In (RC-SS2) | |
Connector | 1.8" (3.5 mm) TRS jack |
Remote | |
Connector | Sub-mini 2.5 mm TRS jack (for RC-20 and RC-3F) |
Ethernet | |
Connector | RJ-45 (100Base-TX) |
USB | |
Connector | USB A-type 4-pin |
Protocol | USB 2.0 high-speed (480 Mbps) |
Power & Other Parameters | |
Voltage | 100 to 240 VAC, 50/60 Hz |
Power Consumption | 100 V: 16 W, 110 V to 240 V: 20 W |
Operating Temperature Range | 41 to 95°F (5 to 35°C) |
Dimensions (W x H x D) | 19.0 x 1.8 x 11.9" (482.6 x 44.5 x 301 mm) |
Weight | 7.1 lb (3.2 kg) |
