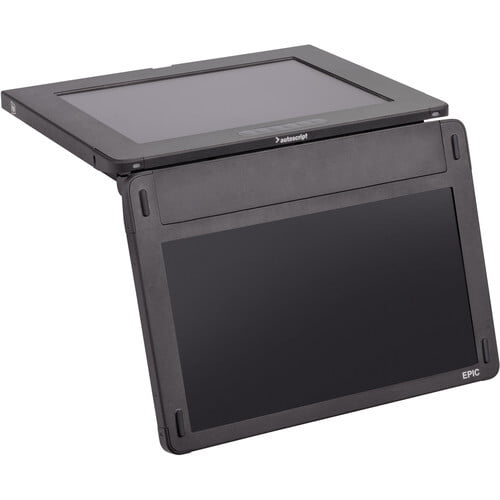

Autoscript EPIC-IP 15" prompt monitor and integrated 15" talent monitor only
The E.P.I.C. integrated prompting system has become the number one broadcast on-camera monitor in the world because of its unique design which combines a high-bright prompting screen with an integrated talent monitor.
Specifications
Prompt monitor size
15" (38.10cm)
Integrated talent monitor size
15.6" (39.62cm)
Prompt monitor aspect ratio
4:3
Prompt monitor brightness
1500 nits
Prompt monitor resolution
1024 x 768 SXGA
Prompt monitor contrast ratio
700:1
Talent monitor aspect ratio
16:9
Talent monitor brightness
400 nits
Talent monitor resolution
1920 x 1080
Script and feedback inputs
LAN, 2x HD-SDI, 2x CVBS
Tally input
Opto sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
42W
Power input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC out
Viewing Angle (H/V)
160 Degrees/120 Degrees
Dimensions
Prompt monitor: 15.7 x 12.5 x 1.6" (39.88 x 31.75 x 4.06cm)
Weight
Integrated monitor: 5.3kg (11.68 lbs
