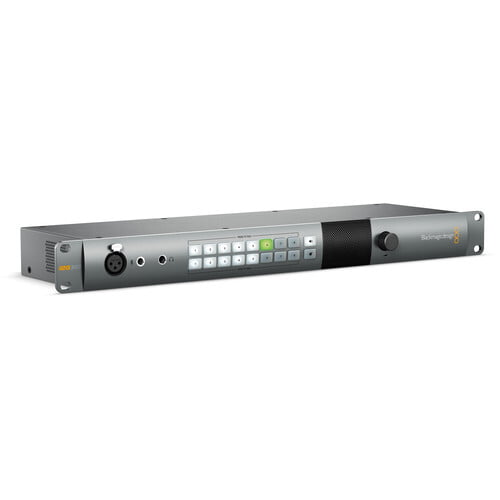

Blackmagic Design ATEM Talkback Converter 4K

I/O

1 x SDI Program Input
1 x SDI Program Output
1 x XLR for talkback microphone
1 x 0.25" TRS headset connector
1 x 0.206" TRS microphone connector
1 x Stereo RCA monitoring output
8 x 10-bit SD/HD/Ultra HD 4K camera input
8 x 10-bit SD/HD/Ultra HD 4K camera output
8 x 10-bit SD/HD/Ultra HD 4K output

With optional connectors
8 x LC fiber SD/HD/Ultra HD I/O with audio

Computer Interface

1 x USB mini-B connector (for firmware updates)

SD Format Support

525/29.97 NTSC
625/25 PAL

HD Format Support

1280 x 720p50, 59.94, 60
1920 x 1080i50, 59.94, 60
1920 x 1080PsF23.98, 24, 25, 29.97, 30
1920 x 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

2K Format Support

2048 x 1080PsF23.98, 24, 25
2048 x 1080p23.98, 24, 25

4K Format Support

3840 x 2160p23.98, 24, 25, 29.97, 30, 50, 60
4096 x 2160p23.98, 24, 25, 29.97, 30, 50, 60

SDI Compliance

SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M

Video Processing

Sampling: 4:4:4, 4:2:2
Color Precision: 10-bit
Color Space: REC 601, REC 709
Rate Support: SDI automatically switches between SD, HD, and UHD 4K

Audio Sampling

24-bit, 48 KHz A/D Conversion

Compatible Operating Systems

Mac OS X 10.9 and newer
Windows 7 and 8

Environmental

Operating Temperature: 41 to 104&decF / 5 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0 to 90% non-condensing

Certifications

EMC, UL, FCC, CE, C-Tick, KCC

Power Supply

110 to 240 VAC input with redundant 12 to 31 VDC input

Power Usage

60 W

Dimensions

19 x 6.3 x 1.75" / 483 x 160 x 44 mm
Form Factor: 1 RU

Weight

5 lb / 2.3 kg
