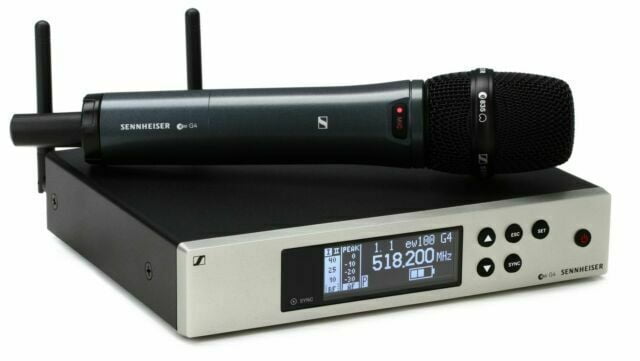

Sennheiser EW 100 G4-835-S-A

Specifications

EM 100 G4

• Frequency range

1G8: 1785 - 1800 MHz

A: 516 - 558 MHz

A1: 470 - 516 MHz

AS: 520 - 558 MHz

B: 626 - 668 MHz

C: 734 - 776 MHz

D: 780 - 822 MHz

E: 823 - 865 MHz

G: 566 - 608 MHz

GB: 606 - 648 MHz

JB: 806 - 810 MHz

K+: 925 - 937,5 MHz

A: 516 - 558 MHz

AS: 520 - 558 MHz

GB: 606 - 648 MHz

G: 566 - 608 MHz

B: 626 - 668 MHz

C: 734 - 776 MHz

D: 780 - 822 MHz

E: 823 - 865 MHz

1G8: 1785 - 1800 MHz

JB: 806 - 810 MHz

K+: 925 - 937,5 MHz

• Dimensions

Approx. 190 x 212 x 43 mm

• Compander

Sennheiser HDX

• THD, total harmonic distortion

≤ 0.9 %

• Weight

Approx. 1.2KG

• Audio output

6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

• Signal-to-noise ratio

≥ 110 dBA

• Switching bandwidth

up to 42 MHz

• Peak deviation

±48 kHz

• Nominal deviation

±24 kHz

• Modulation

Wideband FM

• Power supply

12 V DC

• Antenna connector

2 BNC sockets

• Current consumption

300 mA

• Adjacent channel rejection

Typically ≥ 65 dB

• Intermodulation attenuation

Typically ≥ 65 dB

• Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• RF sensitivity

< 2.5 μV for 52 dBA eff S/N

• Squelch

low: 5 dBµV middle: 15 dBµV high: 25 dBμV

• Equalizer

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range

-10 °C to +55 °C

• Receiver Principle

True diversity

• Blocking

≥ 70 dB

SKM 100 G4-S

• Dimensions

Approx. Ø 50 x 265 mm

• Compander

Sennheiser HDX

• THD, total harmonic distortion

≤ 0.9 %

• Weight

(incl. batteries) approx. 450 g

• Signal-to-noise ratio

≥ 110 dBA

• RF output power

Max. 30 mW

• Switching bandwidth

up to 42 MHz

• Peak deviation

±48 kHz

• Nominal deviation

±24 kHz

• Operating time

Typically 8 h

• Modulation

Wideband FM

• Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

• Current consumption

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

• Input impedance

40 kΩ

• Max. Input voltage

3 Veff

• Powering

3 V battery / 2.4 V rechargeable battery

• Transmission frequency

Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• AF frequency response

80 – 18,000 Hz

• Temperature Range

-10 °C to +55 °C

• Frequency stability

≤ ±15 ppm

MMD 835-1

• Sound pressure level (SPL)

154 dB SPL

• Transducer principle

dynamic

• Pick-up pattern

cardioid

• Sensitivity

2.1 mV/Pa

What's in the Box

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter
• MMD 835-1 microphone head (835-S variants only)
• MMD 845-1 microphone head (845-S variants only)
• MME 865-1 microphone head (865-S variants only)
• rackmount set
• MZQ 1 microphone clamp
• power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• quick guide
• safety guide
• manufacturer declaration sheet
• frequency supplement sheet
