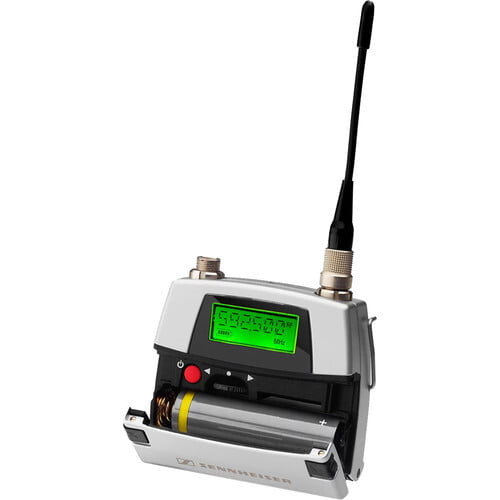

Sennheiser SK 5212-II Miniature Wireless Bodypack Transmitter (L-US: 470 to 608 MHz)
The Sennheiser SK 5212-II is a professional miniature wireless bodypack transmitter for use with the 3000/5000 Series EM 3732 wireless receiver, as part of a high-reliability wireless system.
SPECIFICATION
Frequency response
606 - 790 MHz
776 - 866 MHz
614 - 697,9 MHz
614 - 798 MHz
470 - 638 MHz
Dimensions
53 x 60 x 17 mm
Frequency response (Microphone)
60 - 20000 Hz
Compander
HiDyn plus
THD, total harmonic distortion
< 0,3 %
Storage temperature
-25 °C à +70 °C
Operating temperature
-10 °C à +55 °C
RF frequency range
470 - 866 MHz
Number of channels
Frequency bank "FIX" with up to 59 factory-preset frequencies
Frequency bank "VAR" with 20 freely selectable frequencies (frequencies tunable in steps of 5 kHz)
Peak deviation
+/- 56 kHz
Nominal deviation
+/- 40 kHz
Operating time
PWR.LO: approx. 11h, PWR.HI: approx. 5,5h, PWR.LoI: approx. 5,5 h
Power supply
1 AA battery
Current consumption
PWR.LO: approx. 150 mA, PWR.HI: approx. 220mA, PWR.LoI: approx. 220 mA
Input voltage range
7,75 mV, sensitivity
Dynamic range
typ. 110 dB (A)eff
High pass filter
flat, 120 Hz switchable
