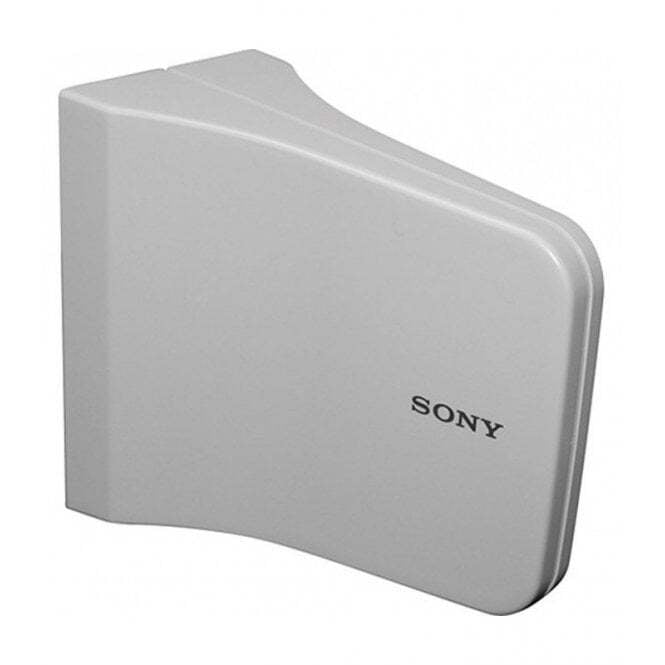

Sony AN-820A//K9L1 - UHF ANTENNA:566-622MHZ

Specifications

Type

• Frequency Code: L

Antenna Section

• Antenna Type: Dipole
• Directivity: Horizontal omnidirectional
• Frequency Range: L: 556 MHz to 662 MHz

Booster Section

• Frequency Range: L: 556 MHz to 662 MHz

Booster Gain:

• 18 +12 dB (with 12 V DC)
• 10 ±12 dB (with 9 V DC)

• Voltage Standing Wave Ratio: 3.0 or less
• Noise Figure: 4 dB or less
• Third Order Intermodulation: 60 dB or more (85 dBμVEMF input)

Input/Output

• Output Connector: BNC-R, 50 Ω

General

• Power Requirements: 9 V/12 V DC
• Power Consumption: 50 mA or less

Operating Temperature:

• 32°F to 122°F
• 0°C to 50°C

Storage/Transport Temperature:

• -4°F to +140°F
• '-20°C to +60°C

Dimensions *[1]:

• Approx. 70 × 117 × 132 mm (W x H x D)
• Approx. 2 7/8 x 4 5/8 x 5 1/4 inches (W x H x D)

Mass:

• Approx. 9 oz
• Approx. 270 g
