Name: Blackmagic Design Mini Converter - SDI Distribution 4K
Brand: Blackmagic Design
SKU: CONVMSDIDA4K
Price: 315.0 USD
Availability: InStock

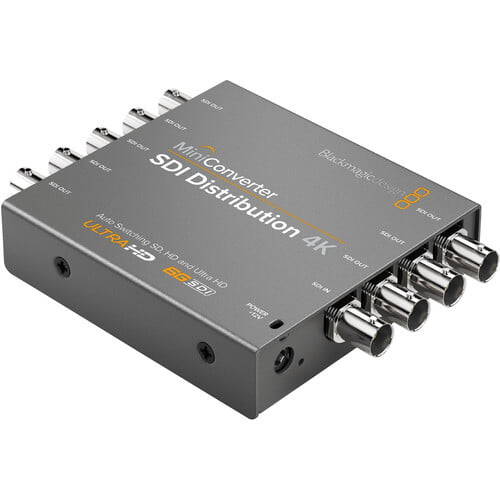

The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format.

Specification

Interfaces

Input Connectors	1 x BNC (6G-SDI)
Output Connectors	8 x BNC (6G-SDI)
Other I/O	1 x USB Type-A Firmware

Standards

Video Standard Compliance	SMPTE 259M/292M/296M/372M/425M
Reclocking	Yes

Transmission

Video Format	SDI (4:2:2 RGB, YUV) NTSC: 23.98/29.97 fps PAL: 25 fps 720p: 59.94/60 fps 1080i: 50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF: 23.98/24/25 fps DCI 2K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 4K: 24 fps
Max Sample Rate/Resolution	48 kHz / 24-Bit

Power

Power Consumption

Power Supply: 12 to 30 VDC (4.8 W)

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90%

General

Dimensions	4.8 x 3.6 x 0.9" / 12.2 x 9.2 x 2.3 cm
Weight	11.88 oz / 336.79 g
